1. Loading the Images

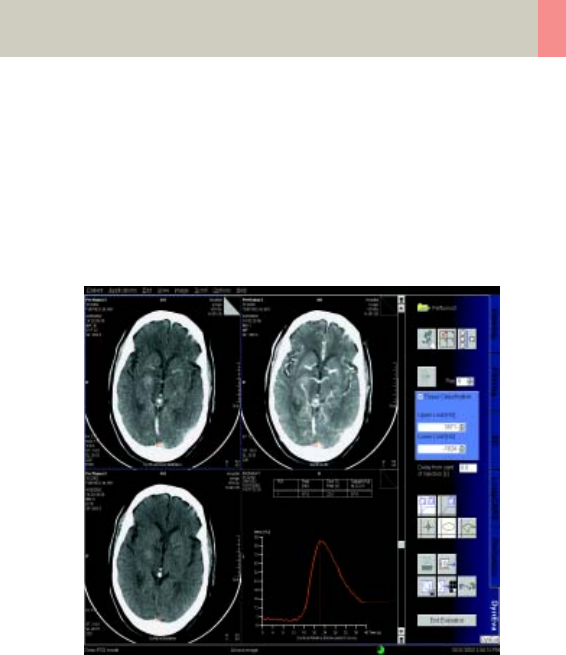

After loading the images into syngo Dynamic Evalua-

tion, the following layout is displayed:

• Tomo segment

The loaded input images are displayed in the upper

left-hand segment. The images are sorted by the

acquired time.

• Parameter image segment

Parameter images are displayed in the upper right-

hand segment

– MIP image

– Average image

– Peak Enhancement image/Time to Peak image
