Workflow

1. Loading the Images

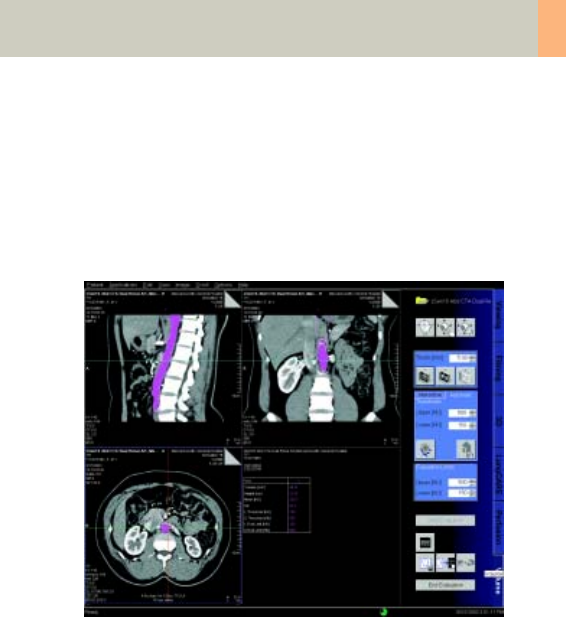

After loading the images into syngo Volume Evalua-

tion, the following layout is displayed:

• Segment 1: Display of sagittal images.

The images are sorted from left to right, according to

the patient’s anatomy.

• Segment 2: Display of coronal images.

The images are sorted from front to back, according

to the patient’s anatomy.

• Segment 3: Display of transversal images.

The images are sorted from head to feet, according

to the patient’s anatomy.

• Segment 4: Display of either the evaluation results or

thick slice images (MaxIP, MinIP or MPR images) that

correspond to the transversal images in segment 3.
