syngo Dental CT

269

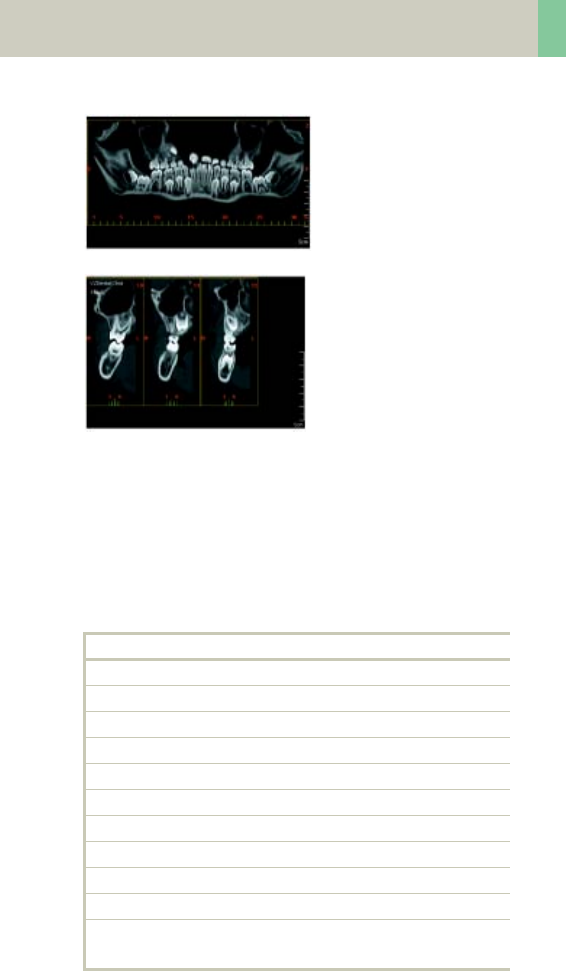

Panoramic view

Paraxial view

Scan Protocols

You will find the Dental scan protocols under body

region “Head”:

Dental

kV 130

Effective mAs 45

Rotation time 1.0 sec

Slice collimation 1.0 mm

Slice width 1.25 mm

Feed/Rotation 2.0 mm

Pitch Factor 1.0

Increment 0.5 mm

Kernel H60s

CTDIVol

10.25 mGy

Effective dose Male: 0.13 mSv

Female: 0.16 mSv

C2-025.630.01.01.02_APPLICATIONGUIDE_SPIRIT.book Page 269 Friday, April 8, 2005 9:55 AM
