Vascular

BodyAngioRoutine/

BodyAngioRoutine08s

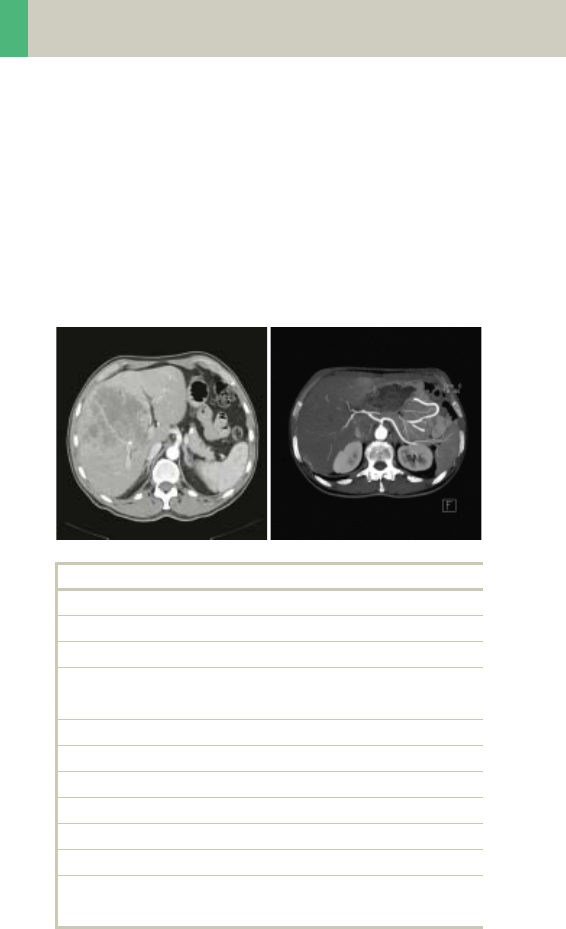

Indications:

Spiral mode for abdominal CTA studies.

A range of 20 cm will be covered in 39/31 sec.

BodyAngio 2

reconstruction

kV 130

Effective mAs 55

Rotation time 0.8/1.0 sec

Slice

collimation

1.5 mm

Slice width 5.0 mm 3.0 mm

Feed/Rotation 5.4 mm

Pitch Factor 1.8

Increment 5.0 mm 2.0 mm

Kernel B31s B31s

CTDIVol 5.93 mGy

Effective dose Male: 2.17 mSv

Female: 2.68 mSv
