Vascular

Embolism

Indications:

Spiral mode for Pulmonary Emboli studies.

A range of 15 cm will be covered in 24 sec.

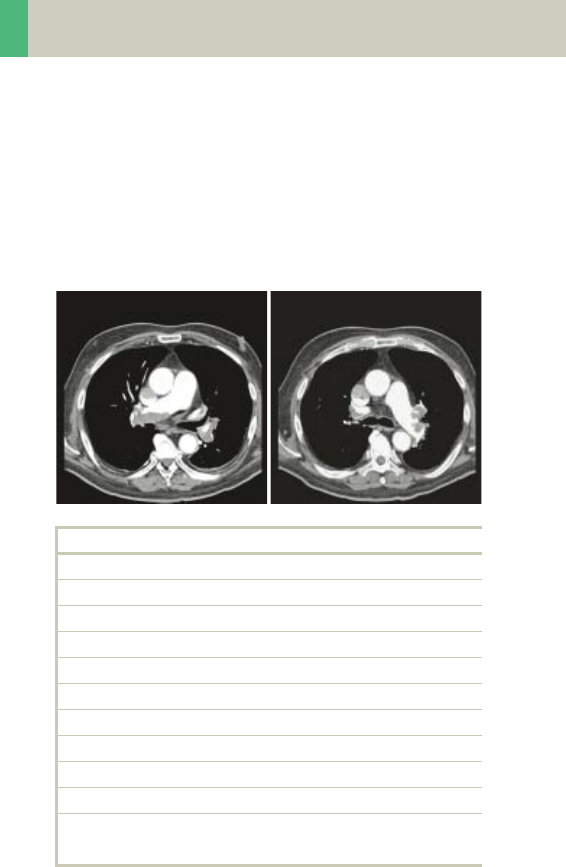

Embolism 2

reconstruction

kV 130

Effective mAs 55

Rotation time 0.8 sec

Slice collimation 1.5 mm

Slice width 3.0 mm 2.0 mm

Feed/Rotation 5.4 mm

Pitch Factor 1.8

Increment 3.0 mm 1.5 mm

Kernel B31s B31s

CTDIVol 5.93 mGy

Effective dose Male: 1.56 mSv

Female: 2.07 mSv

C2-025.630.01.01.02_APPLICATIONGUIDE_SPIRIT.book Page 170 Friday, April 8, 2005 9:55 AM
