Vascular

ThorAngio/ThorAngio08s

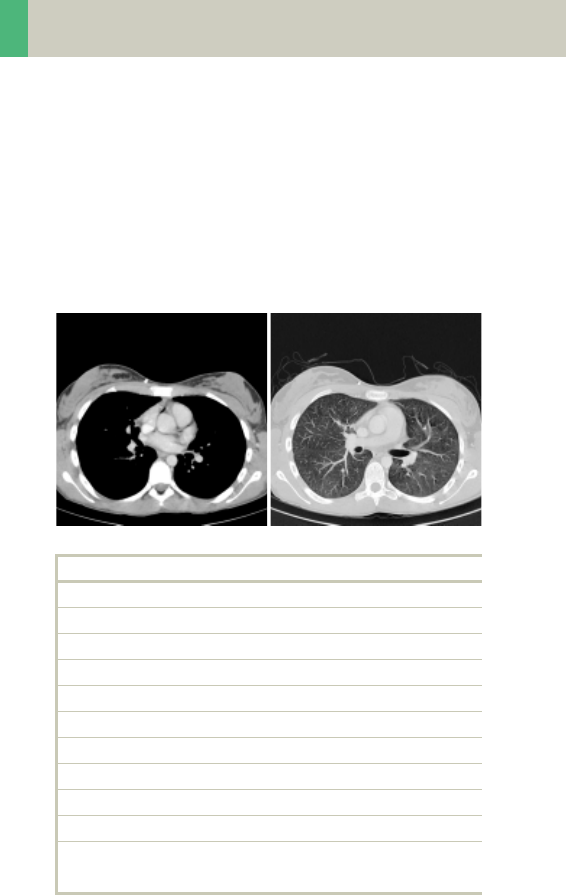

Indications:

Spiral study for location and extent of aneurysms, dis-

section, and ruptures of the thoriac aorta.

A range of 20 cm will be covered in 24/19 sec.

ThorAngio 2

reconstruction

kV 130

Effective mAs 55

Rotation time 0.8/1.0 sec

Slice collimation 2.5 mm

Slice width 5.0 mm 3.0 mm

Feed/Rotation 9.0 mm

Pitch Factor 1.8

Increment 5.0 mm 2.0 mm

Kernel B31s B31s

CTDIVol 5.93 mGy

Effective dose Male: 1.91 mSv

Female: 2.67 mSv

C2-025.630.01.01.02_APPLICATIONGUIDE_SPIRIT.book Page 168 Friday, April 8, 2005 9:55 AM
