Vascular

CarotidAngio/CarotidAngio08s

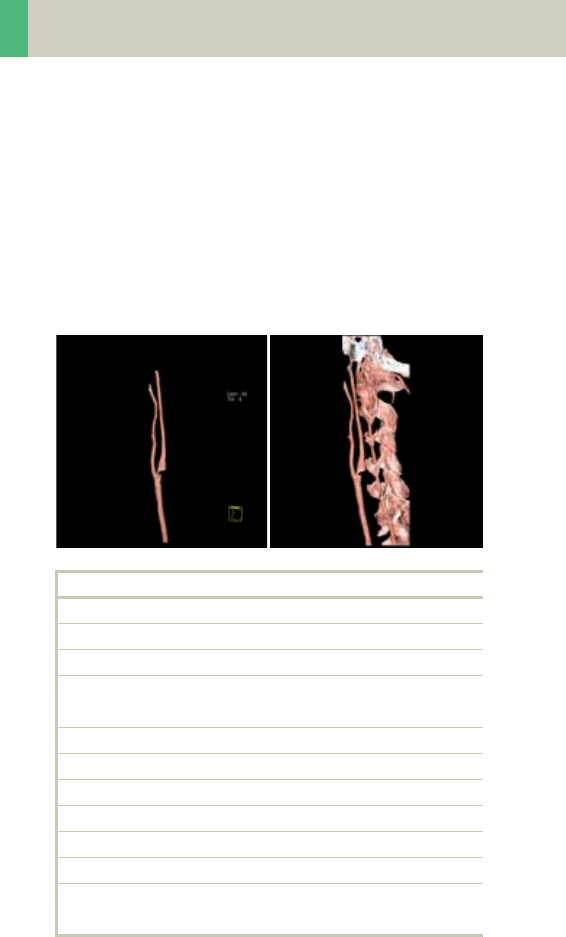

Indications:

Noninvasive CT angiography of carotid stenosis or

occlusions, plaques course abnormalities of the

carotids and vertebral arteries, etc.

A range of 12 cm will be covered in 32/26 sec.

CarotidAngio 2

reconstruction

kV 130

Effective mAs 55

Rotation time 0.8/1.0 sec

Slice

collimation

1.0 mm

Slice width 5.0 mm 1.25 mm

Feed/Rotation 4.0 mm

Pitch Factor 2.0

Increment 5.0 mm 0.8 mm

Kernel B31s B31s

CTDIVol 5.93 mGy

Effective dose Male: 1.15 mSv

Female: 1.25 mSv

C2-025.630.01.01.02_APPLICATIONGUIDE_SPIRIT.book Page 166 Friday, April 8, 2005 9:55 AM
