Lower Extremities

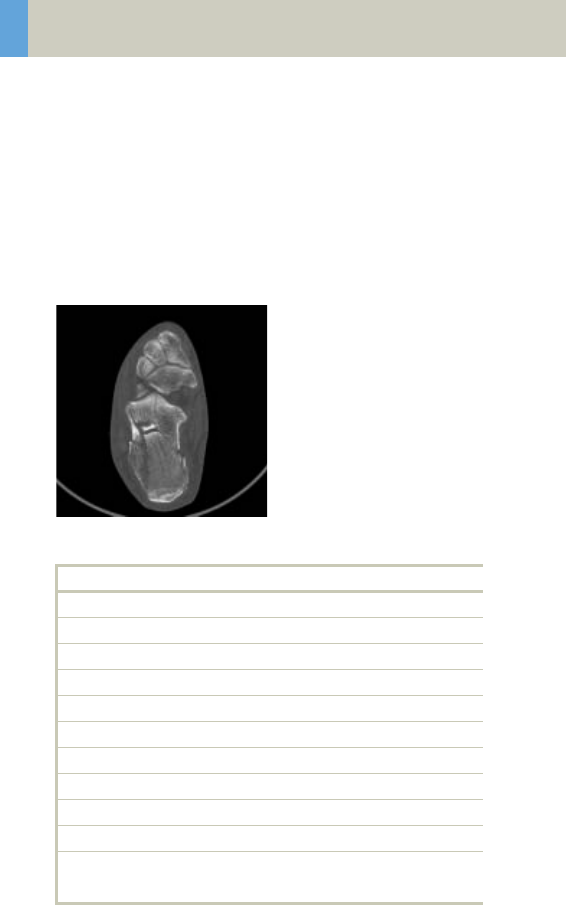

FootHR

Indications:

Spiral mode for high resolution studies of the foot,

e.g., masses, trauma, disorders of the joint etc.

A range of 10 cm will be covered in 52 sec.

Hint

• For image reconstruction of soft tissue, use kernel

B31s.

FootHR 2

reconstruction

kV 130

Effective mAs 30

Rotation time 1.0 sec

Slice collimation 1.0 mm

Slice width 3.0 mm 1.25 mm

Feed/Rotation 2.0 mm

Pitch Factor 1.0

Increment 3.0 mm 0.8 mm

Kernel U90s U90s

CTDIVol 3.23 mGy

Effective dose Male: 0.01 mSv

Female: 0.01 mSv
