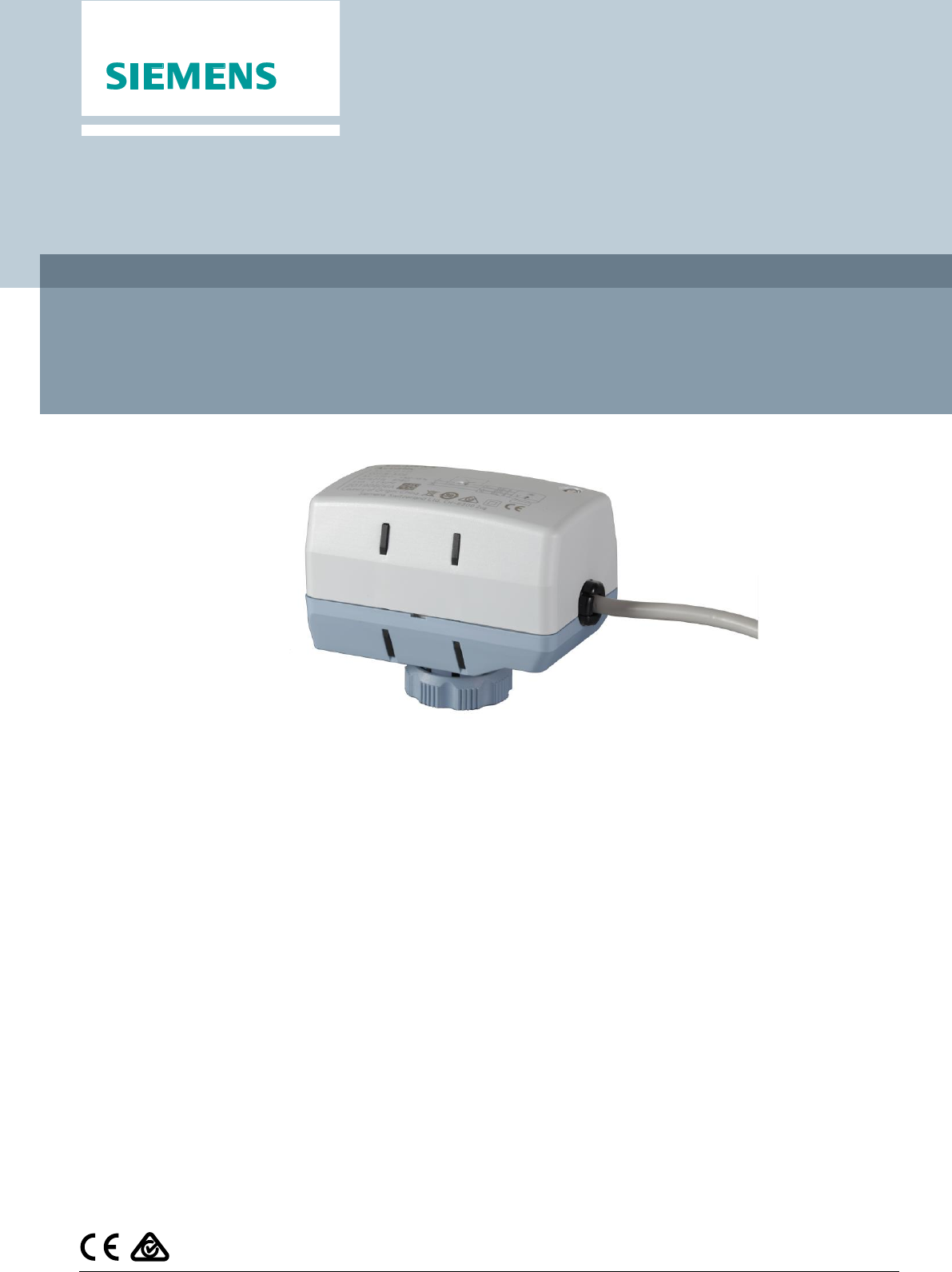

Acvatix™ Electromotoric actuator SUE21P For Siemens PICV ● ● ● ● ● ● A6V11780777_en--_a 2019-05-10 AC 230 V operating voltage, 2-position control signal Positioning force 100 N Direct mounting with M30 x 1.5 union nut (no tools required) 3-wire connection with integral 0.
Use For Siemens PICV: VPI46.., VPP46.., VQI46.. and VQP46.. ● In ventilation and air conditioning plants for control on the water side and automatic hydraulic balancing of terminal units, such as fan coils, induction units, and in heat exchangers for heating or cooling ● In heating zones like self-contained heating systems, apartments, individual rooms, etc. ● For closed circuits Technical design The actuator opens the valve electrically. It incorporates an electric motor and gear mechanism.
Delivery The valves and actuators are supplied in separate packages. The position of the actuator stem is retracted when supplied for better valve assembly. Equipment combinations Room thermostats Type Room thermostat compatible to SUE21P RAB... RAB11; RAB11.1; RAB21; RAB31; RAB31.1 RAA... RAA11; RAA21; RAA31…; RAA41 RCC... RCC10; RCC20; RCC30 RCU... RCU10 RDF... RDF110...; RDF310.2/MM; RDF300.02; RDF302; RDF510; RDF530; RDF600...; RDF800...; RDG... RDG100...; RDG110 RDD... RDD100; RDD100.
PICV VQP46../VQI46.. (for On/Off application) Connection Internally threaded Externally threaded Type Stock no. VQI46.15L0.5 S55264-V136 VQI46.15L0.5Q S55264-V135 VQI46.15F1.3 S55264-V140 VQI46.15F1.3Q S55264-V139 VQI46.20F1.5 S55264-V144 VQI46.20F1.5Q S55264-V143 VQI46.25F1.8 S55264-V148 VQI46.25F1.8Q S55264-V147 VQP46.10L0.5 S55264-V134 VQP46.10L0.5Q S55264-V133 VQP46.15L0.5 S55264-V138 VQP46.15L0.5Q S55264-V137 VQP46.15F1.3 S55264-V142 VQP46.15F1.3Q S55264-V141 VQP46.
Orientation Installation ● ● ● ● ● The admissible temperatures (see “Technical data [➙ 7]”) must be observed. Operate the actuator only with alternating current (see “Technical data [➙ 7]”). The cable should not be twisted. Magnets can damage the actuator. A means of isolation from the power supply must be provided, for example: connecting a circuit breaker or switch fuse to the upstream of the actuator and controller, typically a room thermostat.
Disposal The device is considered an electronics device for disposal in terms of European Directive 2012/19/EU and may not be disposed of as domestic garbage. ● Disassemble the device into individual parts prior to disposing of it and sort the individual parts by the various types of materials. ● Comply with all local and currently applicable laws and regulations. Warranty Technical data on specific applications are valid only together with Siemens products listed under "Equipment combinations".
Technical data Power supply Operating voltage Tolerance AC 230 V +10%/-15% Frequency 50/60 Hz Power consumption 6 VA at 50 Hz (when running only) Primary fuse or breaker rating External, 2 A quick blow Signal input Control signal 2-position (SPST) 1) Parallel operation Permitted 2) Phase cut and pulse-duration-modulated (PDM) signals are not suitable, 3 position operation not permissible, SPST = Single Pole, Single Throw 1) 2) Consider controller’s output power Operating data Position with de
General ambient conditions Operation EN 60721-3-3 Transport EN 60721-3-2 Storage EN 60721-3-1 Environmental conditions Class 3K3 Class 2K3 Class 1K3 Temperature +1...+50 ℃ -25...+70 ℃ -5...+50 ℃ Humidity 5...85% r.h. <95% r.h. 5...95% r.h.
