Detailed descriptions

16.4 BIOS-Setup

SIMATIC IPC627C

Operating Instructions, 11/2010, A5E02669068-02

169

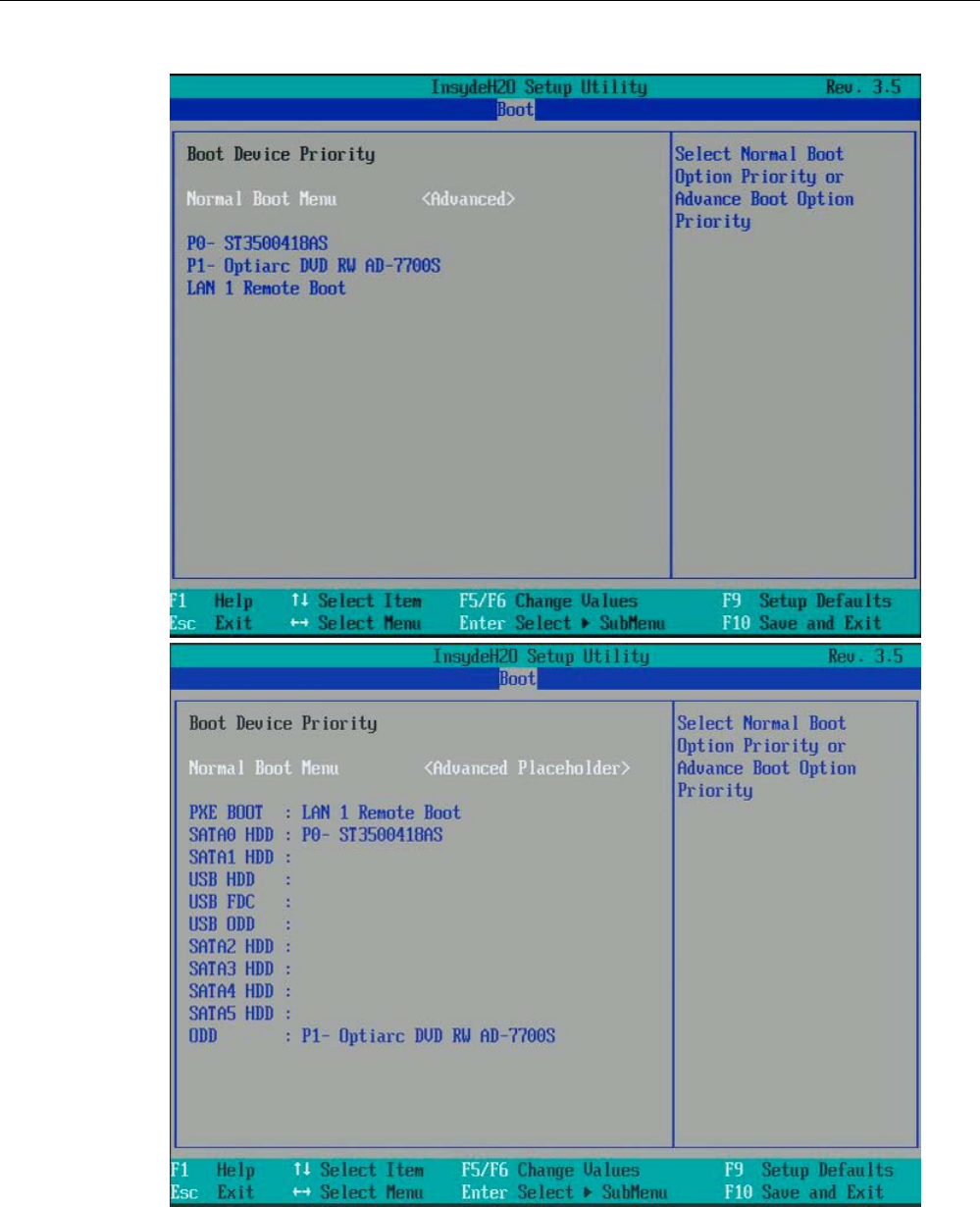

Figure 16-21 Submenu "Boot / Legacy / Normal Boot Menu <Advanced>"

Figure 16-22 Advanced Placeholder

Bootable components that are disconnected from and then reconnected to the PC between

booting processes are set by the BIOS to the first position in the case of the "Advanced"

setting, and relocated back to their original booting position (Advanced Placeholder Boot) in

the case of the "Advanced Placeholder" setting.
