Detailed descriptions

16.4 BIOS-Setup

SIMATIC IPC627C

Operating Instructions, 11/2010, A5E02669068-02

167

16.4.9 Boot Menu

In this menu this booting behavior of the device is specified and the boot medium or

sequence of the boot media is determined.

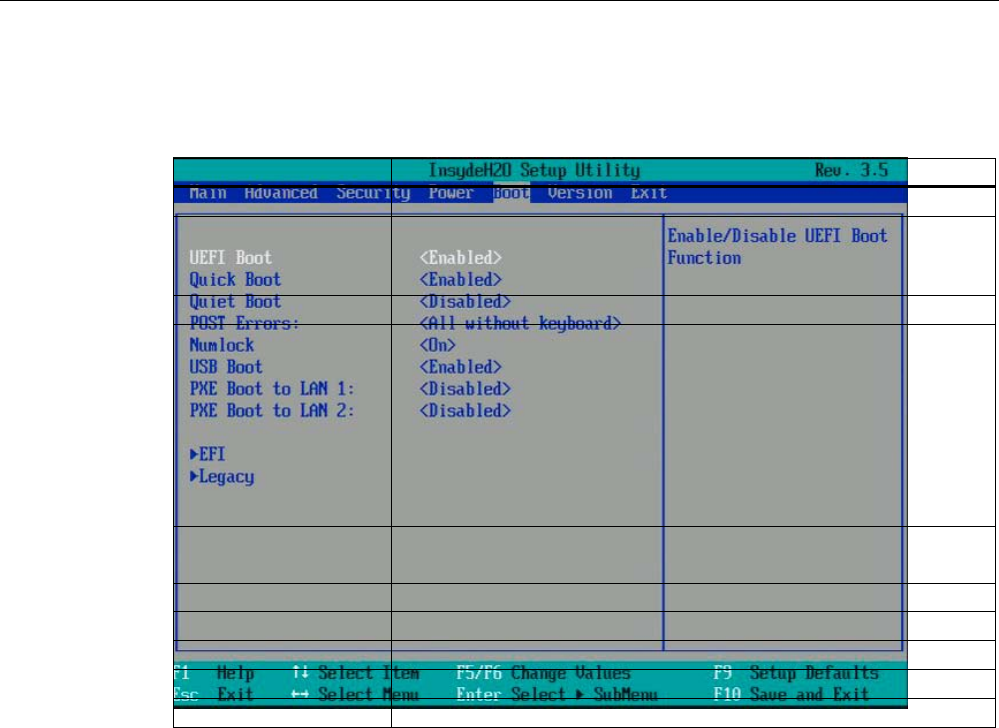

Figure 16-19 Boot Menu

Entry Meaning

UEFI Boot Enable or disable the UEFI Boot functionality

Quick Boot Enable or disable

If enabled, the programming device starts faster because various

hardware function tests are skipped.

Quiet Boot Booting is carried out in text mode.

POST errors Specification of the booting behavior if errors are recognized.

 Never halt on errors: Continue the booting process when errors occur.

 Halt on all errors: Interrupt the booting process when errors occur.

 All without keyboard: Interrupt the booting process when errors occur,

except for keyboard errors.

 All without kb/smart: Interrupt the booting process when errors occur,

except for keyboard and S.M.A.R.T errors. (SMART: Self-Monitoring,

Analysis and Reporting Technology)

NumLOCK On = Enable numeric keypad on right

Off = Disable numeric keypad on right (= navigation)

USB Boot Allow/Do not allow booting of inserted USB devices.

Ethernet 1 Remote Boot Enable or disable booting of the LAN1.

Ethernet 2 Remote Boot Enable or disable booting of the LAN2.

EFI> Set order of the EFI boot media

Legacy> Set traditional boot order (Normal, Advanced, Advanced Placeholder).

Boot menu > Legacy: Standard
