Dimension drawings

15.2 Dimensional drawings of the device

SIMATIC IPC627C

124 Operating Instructions, 11/2010, A5E02669068-02

15.2 Dimensional drawings of the device

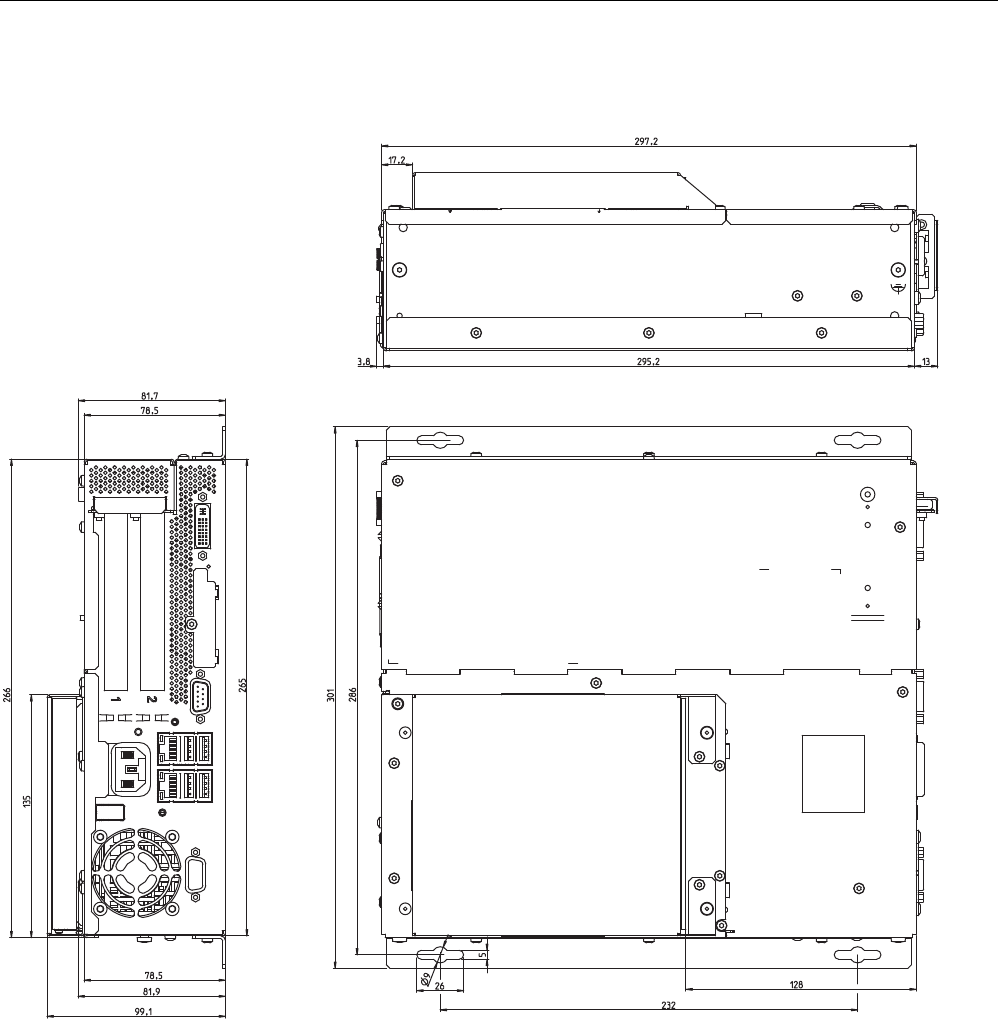

Figure 15-1 Dimensional drawing for mounting with angle bracket
