Parameter assignment and operation of the device
8-7
© Siemens AG 2010 All Rights Reserved
SICLOCK
®
TC100 Operating Instructions
8.2.2 Network settings on the device
One-button operation can be used to read out the network settings of the device,
and settings can be made to the extent required for commissioning.
The following can be set and/or readout:
• IP address, selection from the list offered
• Subnet mask, selection from list offered
• Gateway, read only.

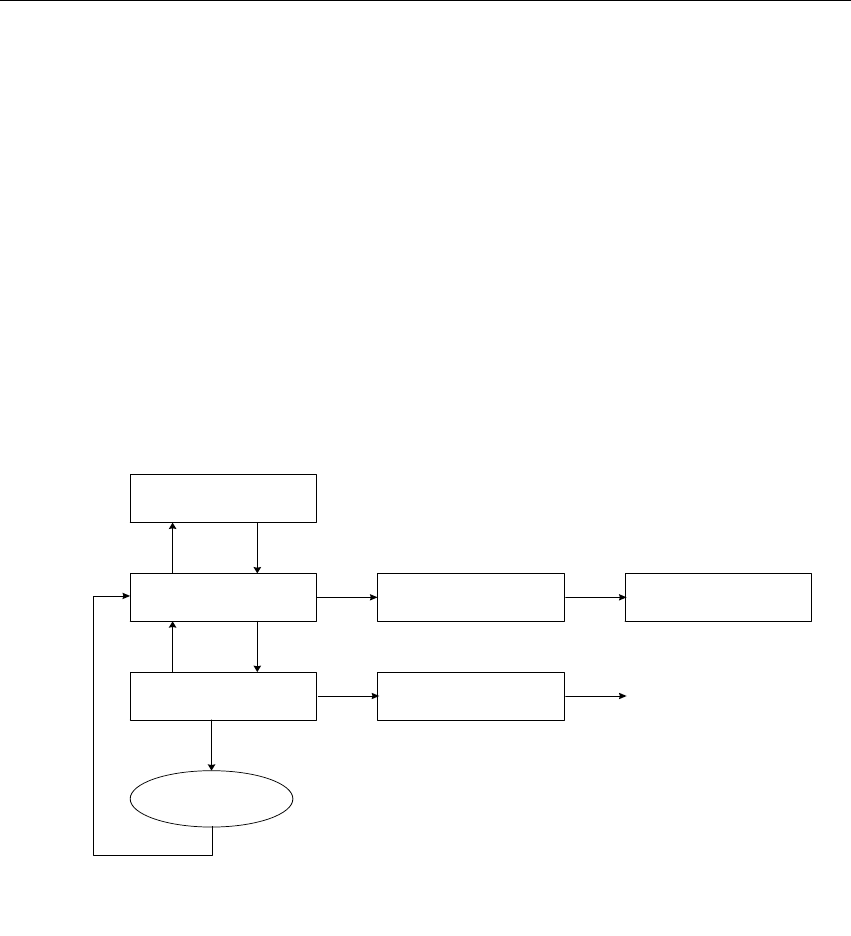

The following diagram shows the setting options:
.
Figure 8-9 Assigning network settings
On level 2, one of the predefined selection values can be selected for the network
setting.
For IP addresses:
• 192.168.001.010
• 192.168.001.011
• 192.168.002.020
• 192.168.002.021
For subnet masks:
• 255.255.255.000
• 255.255.254.000
11:46:48 ->GPS1
Mo, 4. Oct. 2010
IP adress ->
192.168.001.010 -->
short
45s
IP subnet ->
255.255.255.000 -->
short
IP Gateway ->
000.000.000.000
short
long
->Selection -->Reset
192.168.001.010 ?
45s
->Selection -->Reset
192.168.001.011 ?
short
...
long
Accept value
Level 1:
Level 2:
short
