8-6© Siemens AG 2010 All Rights Reserved
SICLOCK
®
TC100 Operating Instructions
Parameter assignment and operation
of the device 8
SICLOCK TC100 has a two-line, alphanumeric LCD display with background lighting and auto-
matic contrast control for displaying the date and time, messages and status.
You can use the MODE button to readout and change parameters important for commissioning.
.

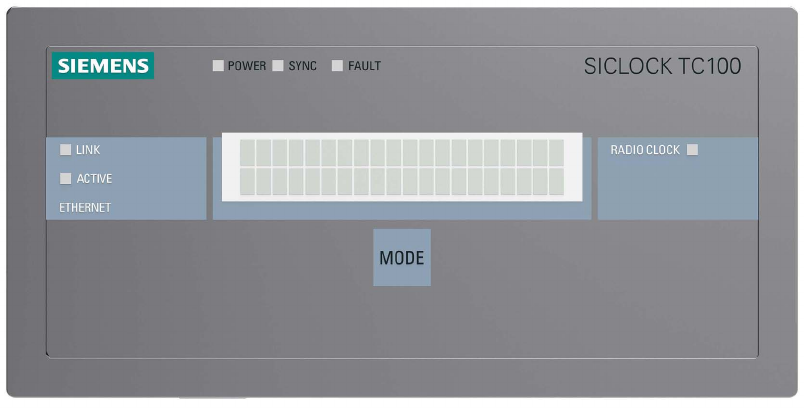

Figure 8-1 Front view of SICLOCK TC100
