7.4 Archive
In the Archive tab of the Configuration Tool, you can load archived data from the
device, and save the data in a file, as well as evaluate and search the data with
filter functions.

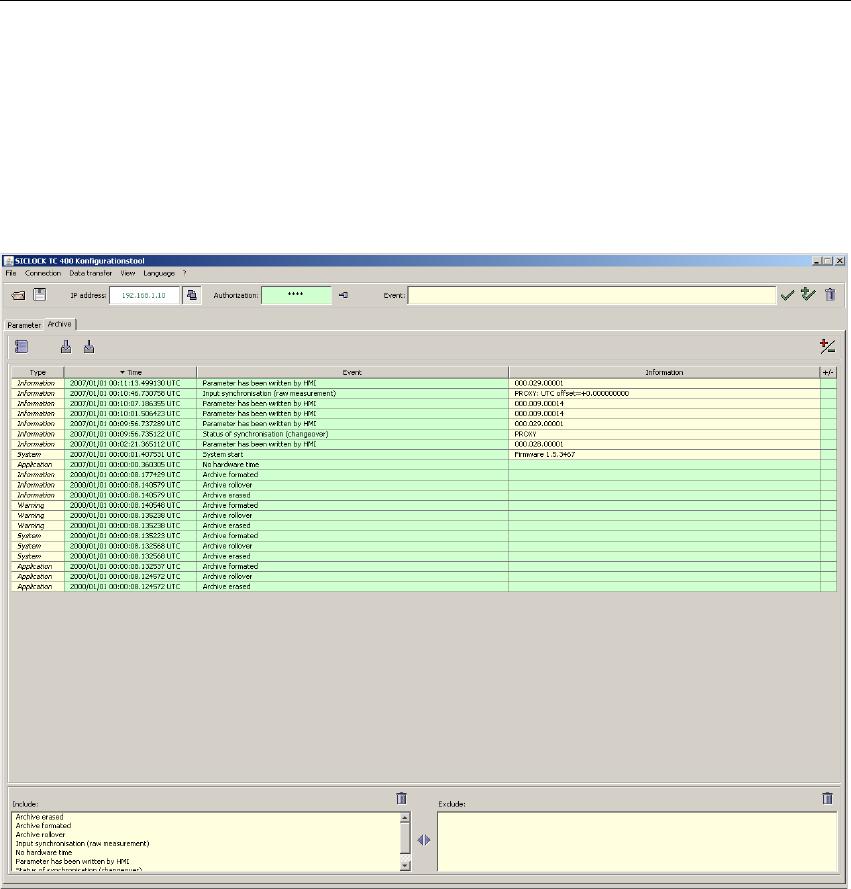

Figure 7-8 SICLOCK TC100 Configuration Tool - Archives
(1) Toolbar of the Archive tab
(2) Archive table
(3) Include filter (shows events)
(4) Exclude filter (hides events)
