7.3.3 Editing parameters
Precondition for editing a parameter entry
• It must be a writable entry ( ).
How to change the values of a parameter entry:
1. Show the entries of the desired parameters in the Parameter table, see
Hiding / showing Parameter table entries (Chapter 7.3.2).
2. Click the "Value" column of the parameter entry with the mouse.
−> The dialog for editing the entry opens.
An entry can be canceled with ESC.

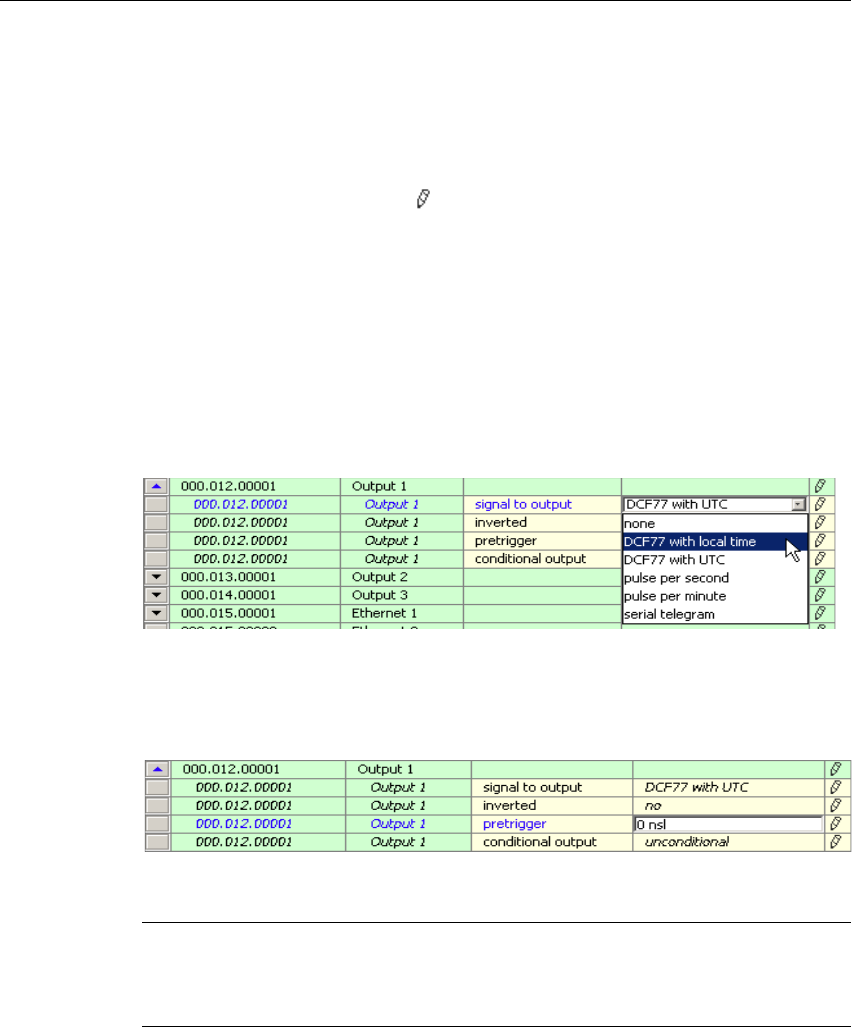

Figure 7-5 of an editing dialog drop down list box
You can enter new values for parameters with units without entering the unit. Any
units entered are ignored, only the numerical value is accepted.
Figure 7-6 Example of an editing dialog with a numerical entry
Note
In online mode, the value is sent to the device when the entry has been
completed.
