7-4©Siemens AG 2010 All Rights Reserved
SICLOCK
®
TC100 Operating Instructions
Configuration Tool 7
The SICLOCK TC100 Configuration Tool is available to make it easier to assign
parameters and configure the SICLOCK TC100. The tool can be called from an
Internet browser as a Web interface.
With the Configuration Tool you can, among other things, view and change para-
meters online and offline, view archives, search them with specific filter criteria,
and load, backup and change the parameter assignments of the
SICLOCK TC100 device.

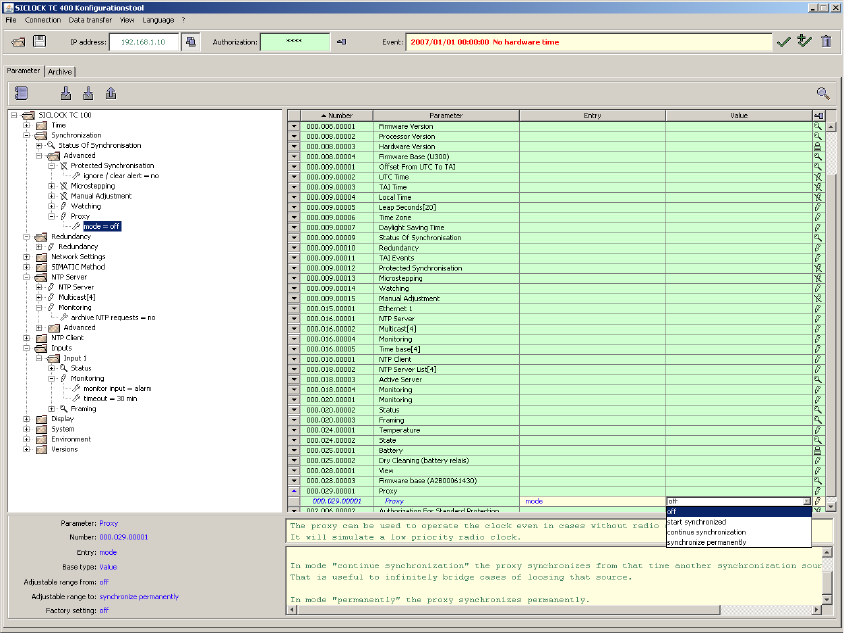

Figure 7-1 SICLOCK TC100 Configuration Tool
(1) Toolbar of the Configuration Tool
(2) Working area of the Configuration Tool
You can make settings and assign parameters in the Parameter tab, and check
and search for events in the Archive tab.
