Connection
6-3
© Siemens AG 2010 All Rights Reserved
SICLOCK
®
TC100 Operating Instructions
A SICLOCK GPSDEC decoder is connected as shown in Figure 6-5.

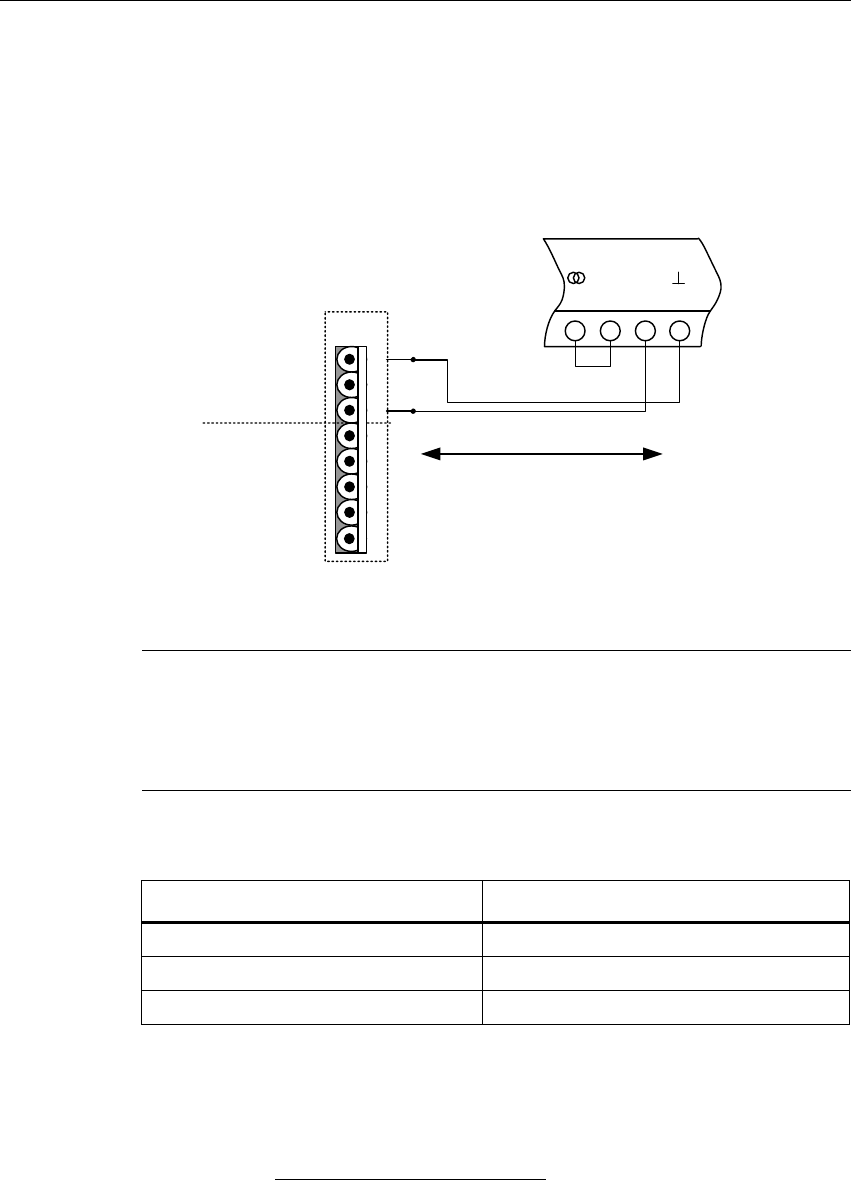

Figure 6-5 Connection of the radio clock SICLOCK GPSDEC to RADIO CLOCK 1
Functional check
The "RADIO CLOCK" LED on the front panel must flash at about 1Hz when the
GPSDEC is received correctly.
The parameter /Inputs/Input 1/Status (0.20.02)
must change to "GPS" or "DCF77"
after about three minutes reception.
Caution
A SICLOCK GPSDEC may only be operated as an active radio clock.
Operation as a passive radio clock leads to the destruction of the
SICLOCK GPSDEC.
Table 6-2 Recommended assignment of parameters to the GPSDEC decoder for
synchronizing a SICLOCK TC100
Parameter Setting
Time difference from GMT 00:00
Daylight saving time change „none“
X1.5-8 (DCF77TTY) „DCF without ZZB“
;
PD[P
'&)77<
5$',2&/2&.%
5$',2&/2&.$
5$',2&/2&.*1'
6.3.3 SICLOCK GPSDEC
(SICLOCK GPSDEC has been discontinued, please use SICLOCK GPS1000)
