User Manual

CK1N9894en
05.10.2005
Siemens Building Technologies
Building Automation
9
894
SICLIMAT™ X
Multiple user system

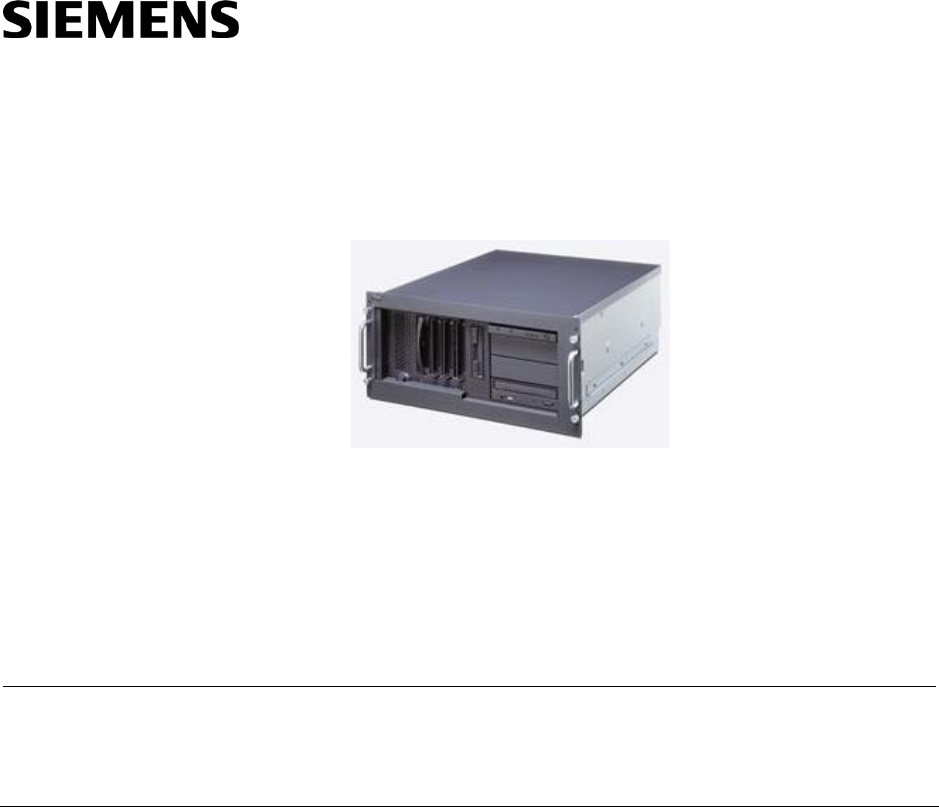

OSM-TX 150 rack
OSMR-TX
Forms the basis for multiple user operating and monitoring systems for
SICLIMAT X, consisting of one rack-mounted server PC.
Use
OSM-TX 150 S3 contains only hardware. The actual SICLIMAT X software is optional.
It communicates with connected SIMATIC S7 automation stations via the industrial
Ethernet system. The E/P link is required to connect the SIMATIC S7 via PROFIBUS.
The S5 link is required (addition of ISA components) when the OSM-TX 150 S3 is
employed as a replacement for existing computers (e.g. service).
