Data Sheet for Product

CK1N9826en

09.03.2001

Siemens Building Technologies

Landis & Staefa Division

826

SICLIMAT™ X

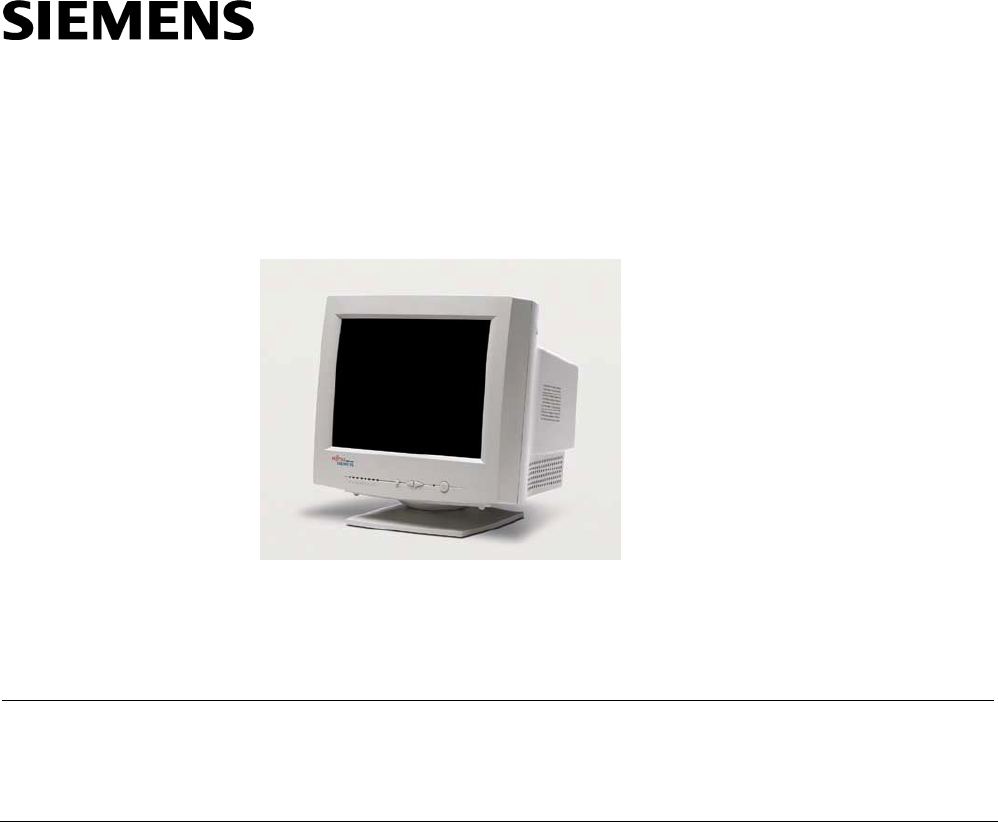

BS15C monitor BS15C

The monitor serves as the system console for the X-OSM operator station in the

SICLIMAT X multi-user system.

Use

Manufactured to the highest quality requirements, the 35 cm (15") monitor has a fast

refresh rate of max. 85 Hz at a screen resolution of 800 x 600 pixels, making it virtually

flicker-free. Optimum ergonomic design includes a sophisticated anti-glare CRT, a non-

interlaced display and excellent contrast.

With its integrated swivel-and-tilt base, the monitor can be set at the ideal viewing angle

and is easily adjusted to take account of existing lighting conditions.

Brightness, contrast, sizing and centring can be conveniently set with the new digital

control system.

Pincushion distortion control ensures that lines are displayed right up to the edge of the

screen.

All adjustment options are located on the front of the monitor, offering easy access for

readjustment by the user.

The monitor is GS-tested (GS is the official German safety mark) and complies with the

very stringent recommendations of the Swedish MPR II standard.

PAGE 1
9 826 SICLIMAT™ X BS15C monitor BS15C The monitor serves as the system console for the X-OSM operator station in the SICLIMAT X multi-user system. Use Manufactured to the highest quality requirements, the 35 cm (15") monitor has a fast refresh rate of max. 85 Hz at a screen resolution of 800 x 600 pixels, making it virtually flicker-free. Optimum ergonomic design includes a sophisticated anti-glare CRT, a noninterlaced display and excellent contrast.
PAGE 2
Ordering When ordering, please specify the quantity, product name and type code. Type BS15C Order No. 6FL4305-4HA14 Specification No. 15/42011A Technical data Data Type Screen diagonal Graphics resolution Dot pitch Phosphor Frequencies Average brightness Preset image size Power supply Connections/interfaces Dimensions/weight Ambient conditions Product safety Protection class Nominal voltage Frequency Power consumption Mains cable (1.5 m) Data cable (1.
