The actuator must not be fitted in the upright position to ensure that measurement of
the room air will not be affected by rising air from the hot water pipe.
2111Z03
Mounting Instructions are printed on the package.
This type of actuator is for use on applications where the criteria of the RTN51..
standard versions are not satisfied. This actuator can be fitted in any position. The
sensing element must not be covered and it must not be affected by direct solar
radiation or air drafts.
In case of unknown conditions (especially in new buildings), it is always advisable to
use this version.

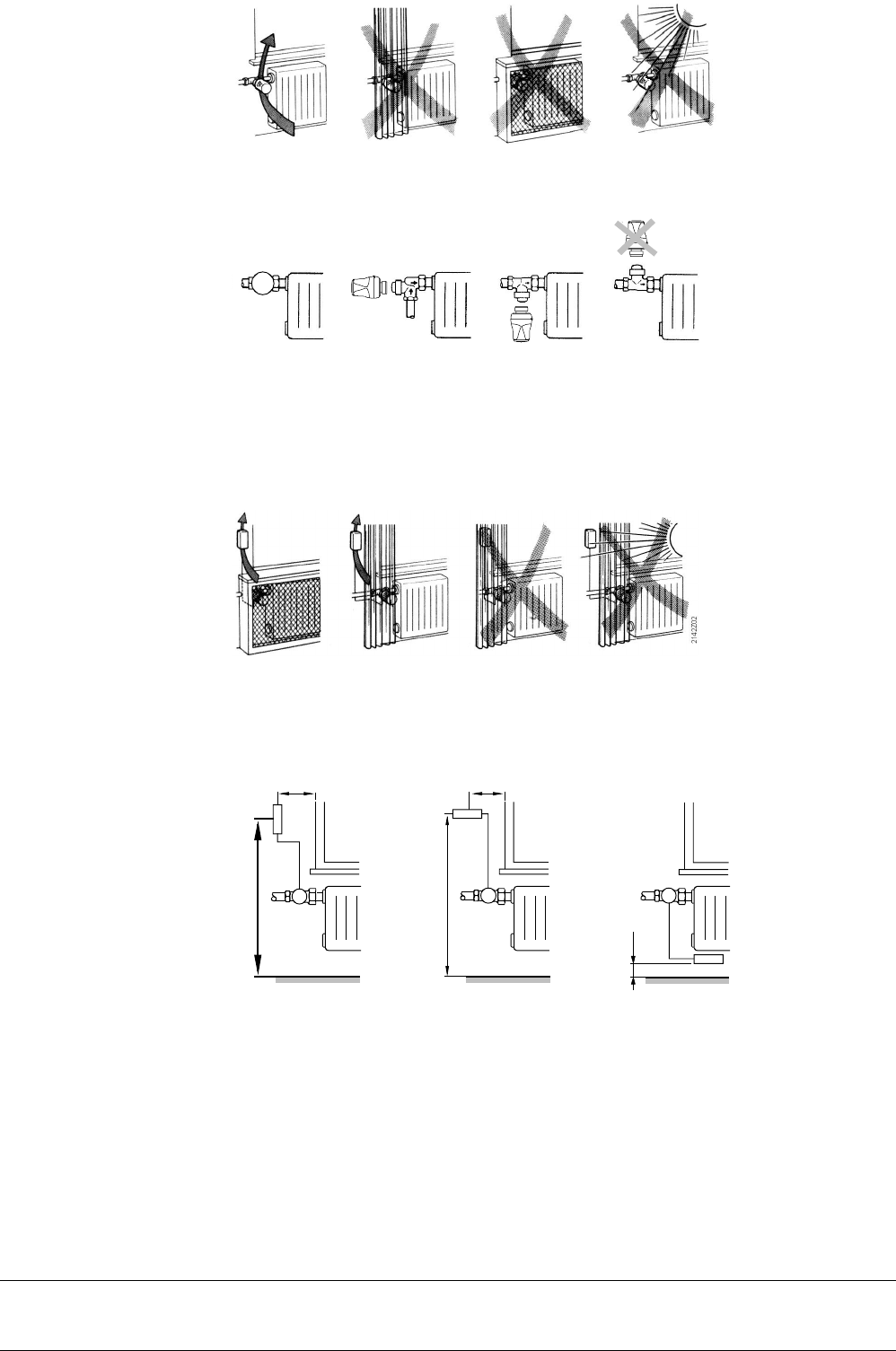

For comfort reasons, the sensing element should be located as shown in the following
illustration:
10 cm min.
1.2 m - 1.5 m
0.5 m - 1 m
0.5 m - 1 m
2111Z37
1.2 m - 1.5 m
When mounted on poorly insulated outer walls, a thermally insulating layer should be
fitted in between.
Mounting Instructions are printed on the package.
For applications where the radiator or convector valve is not accessible or not easily
accessible. The actuating section can be fitted in any position. For the sensing element,
the same criteria apply as for the RTN71 (location of the remote adjuster is to be
considered).
Mounting Instructions no. 74 319 0466 0 are enclosed with the packaging.
Maintenance
The thermostatic actuators are maintenance-free.
RTN71
Version with remote
sensing element and
capillary tube
RTN81
Version with remote
sensing element and
remote adjuster
