Operating Instructions

6 / 10
Siemens Operating Instructions RMU7..B CE1B3144_en
Building Technologies Heat or cool per time switch program 2015-03-31

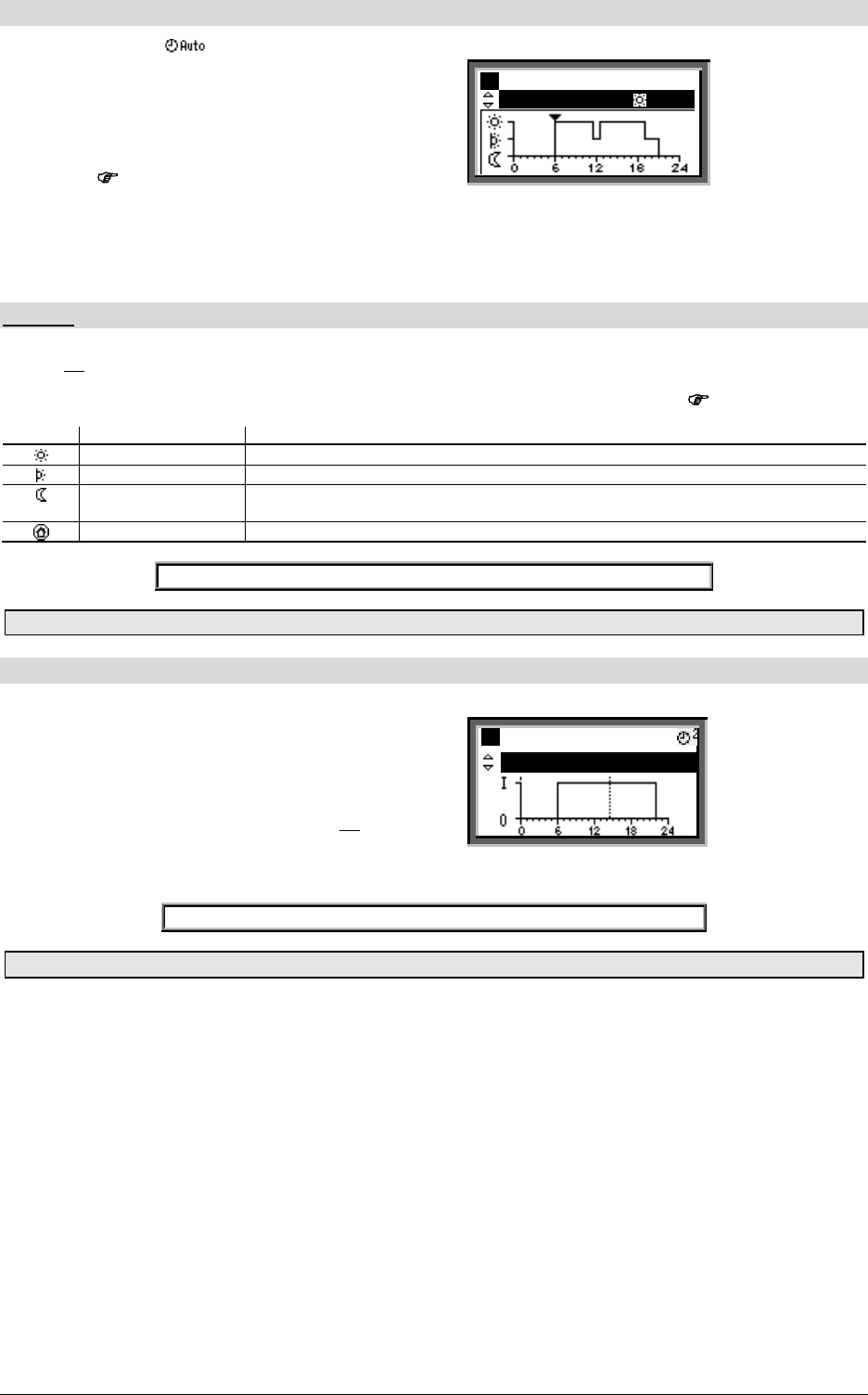

Heat or cool per time switch program
In room operating mode
, the controller operates
according to the selected heating program.
Time switch program
In the time switch program, the start time and associated
room operating mode have been entered for all periods of
24-hour heating / cooling operation. The heating program
has been entered for you; if you wish, you can change the
entries made (
Page 8) to satisfy your personal needs.
Example of a time program:
Tuesday
As of 12:30 Comf
As of 6:00 am Comfort mode
As of 11:30 am Precomfort mode
As of 12:30 pm Comfort mode
As of 7:00 pm Precomfort mode
As of 9:00 pm Economy mode
Do not heat or cool per time switch program
Select another room operating mode
If you do not
want to heat or cool according to the time
switch program (i.e., not automatically), you need to change
the preselection for the room operating mode.
Setpoints
The setpoints assigned to the room operating modes use
the same symbols and designations.
Setting setpoints is described on
page 7.
Symbol Room operating mode Comments
Comfort Plant ON, Heating / Cooling on comfort
Precomfort Plant ON, Heating / Cooling on precomfort
Economy Plant OFF, Sustained mode Heating / Cooling on economy;
Night cooling and frost protection activated
Protection Plant OFF, frost protection active
Path:
Welcome > Main menu > Room operating mode... > Preselection > ...
Do not forget to switch back to auto when you only intend to heat/cool temporarily!
Operate aggregates per time switch 2
When your controller is configured with a time switch, the
controlled aggregate (e.g. a pump) is switched on and off
per the set time switch program.
If also configured with [Time switch 2] op selector, it must be
set to auto, to automatically switch on and off the aggregate
per the set time switch program.
If a [time switch 2] op selector is available and you do not
want
to control the aggregate per the time switch program, you
can manually override it with the [time switch 2] op selector
either on or off.
Example of a time program:
Time switch 2
Saturday
Switched on at 6:00 am – switched off at 10:00 pm
Path:
Welcome > Main menu > [Time switch 2] op selector > Preselection:
If you want to set the plant to On or Off for a limited period only, do not forget to return to auto in due time!
