1 Installation
1.1 Mounting
NOTICE
Hint
Mount the sensor in a location that is easy to open the cover and access the
terminals, DIP switches and view the LEDs.
Proceed as follows to mount the sensor to a surface:
● Screw the sensor at the 2 brackets (on the device sides) to the mounting
surface.
● Keep the following guidelines

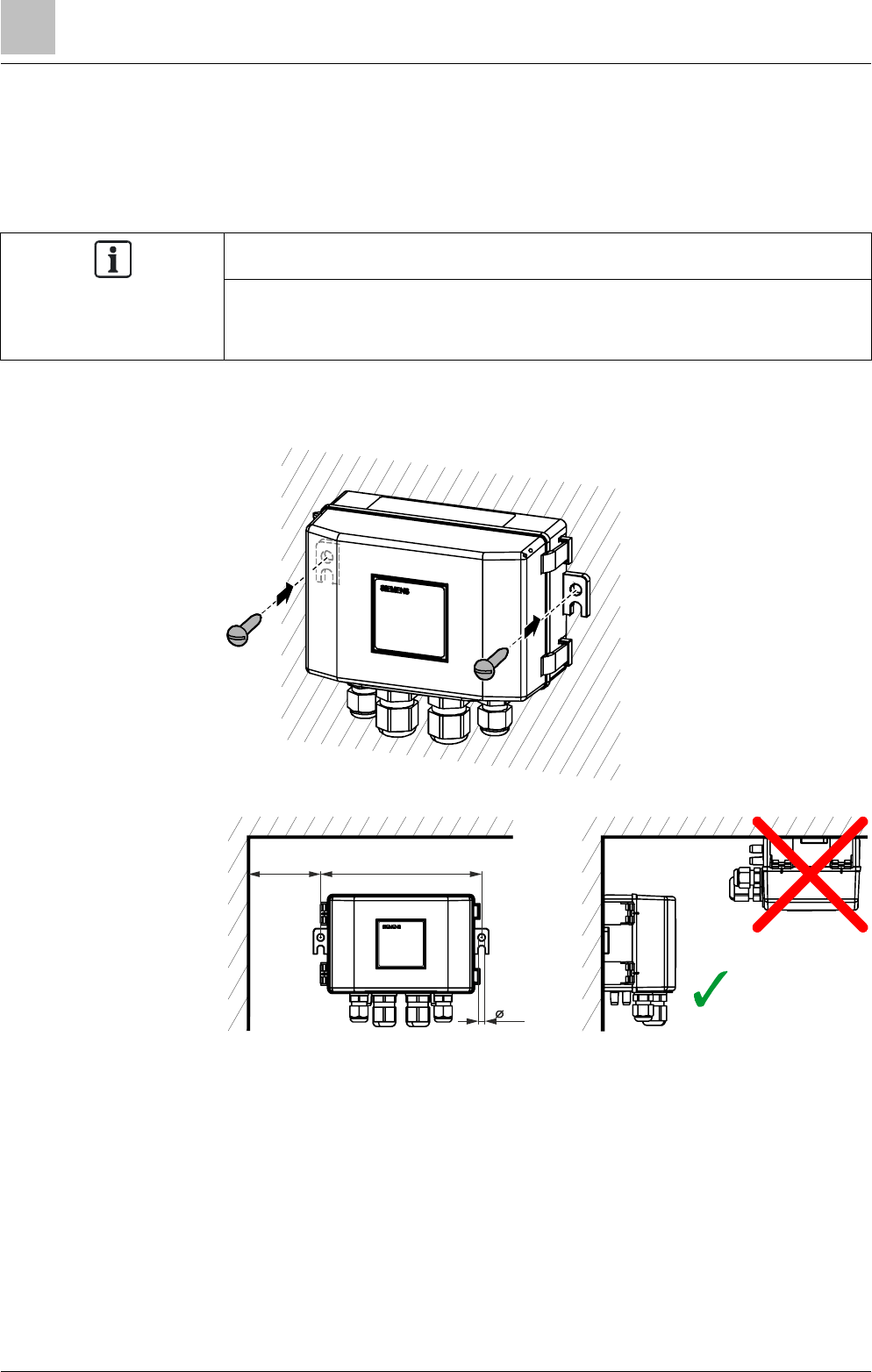

Fig. 1: All dimensions in mm
134
5.5
min. 75
