1.4.4 Signal wiring
The following graphics illustrate all signal types of a QBM3700...

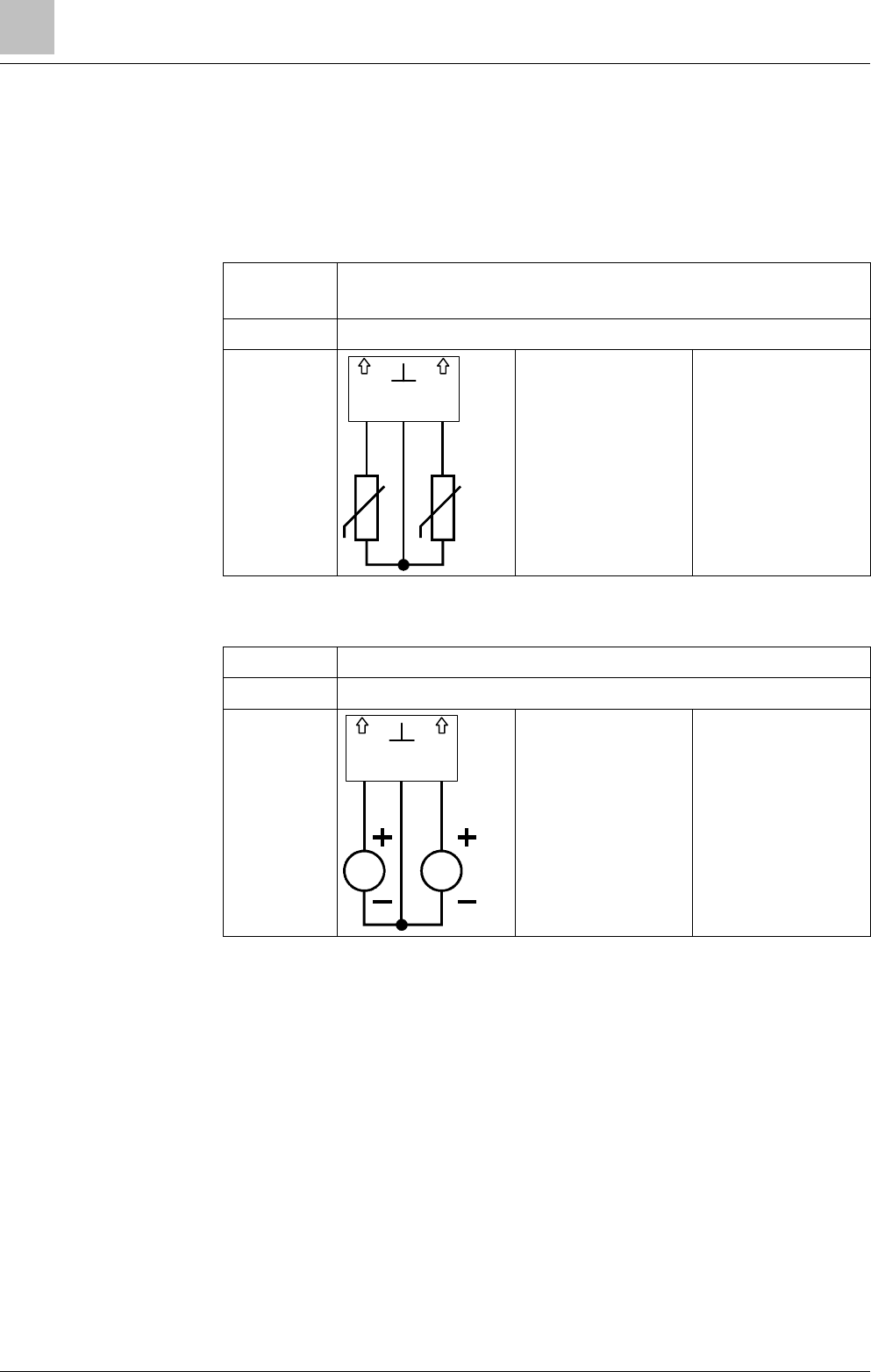

1.4.4.1 Analog inputs
Analog inputs for passive sensors
Application Connecting passive temperature sensors.
Signal types: Pt1000, LG-Ni1000, NTC10k, and Ni1000
Terminal AI1, AI2
Diagram
Analog inputs for voltage signal
Application Connecting devices that supply a 0…10 V signal
Terminal AI1, AI2
Diagram
AI1 AI2
AI1 AI2
==
