Smart Infrastructure Tauchtemperaturfühler QAE3010..., QAE3075... CE1N1794de
2021-04-07
Widerstandscharakteristik Pt100 (DIN EN 60 751, Klasse B)
Temp. in °C
50 40 30 20 10
0
10 20 25 30
Widerst. in 
80,306 84,271 88,222 92,160 96,086 100,00 103,903 107,794 109,735 111,673
Temp. in °C
40 50 60 70 80 90 100 110 120 130
Widerst. in 
115,541 119,397 123,242 127,075 130,897 134,707 138,506 142,293 146,068 149,832
Temp. in °C
140 150 160 170 180 190 200 210 220 230
Widerst. in 
153,584 157,325 161,054 164,772 168,478 172,173 175,856 179,528 183,188 186,836

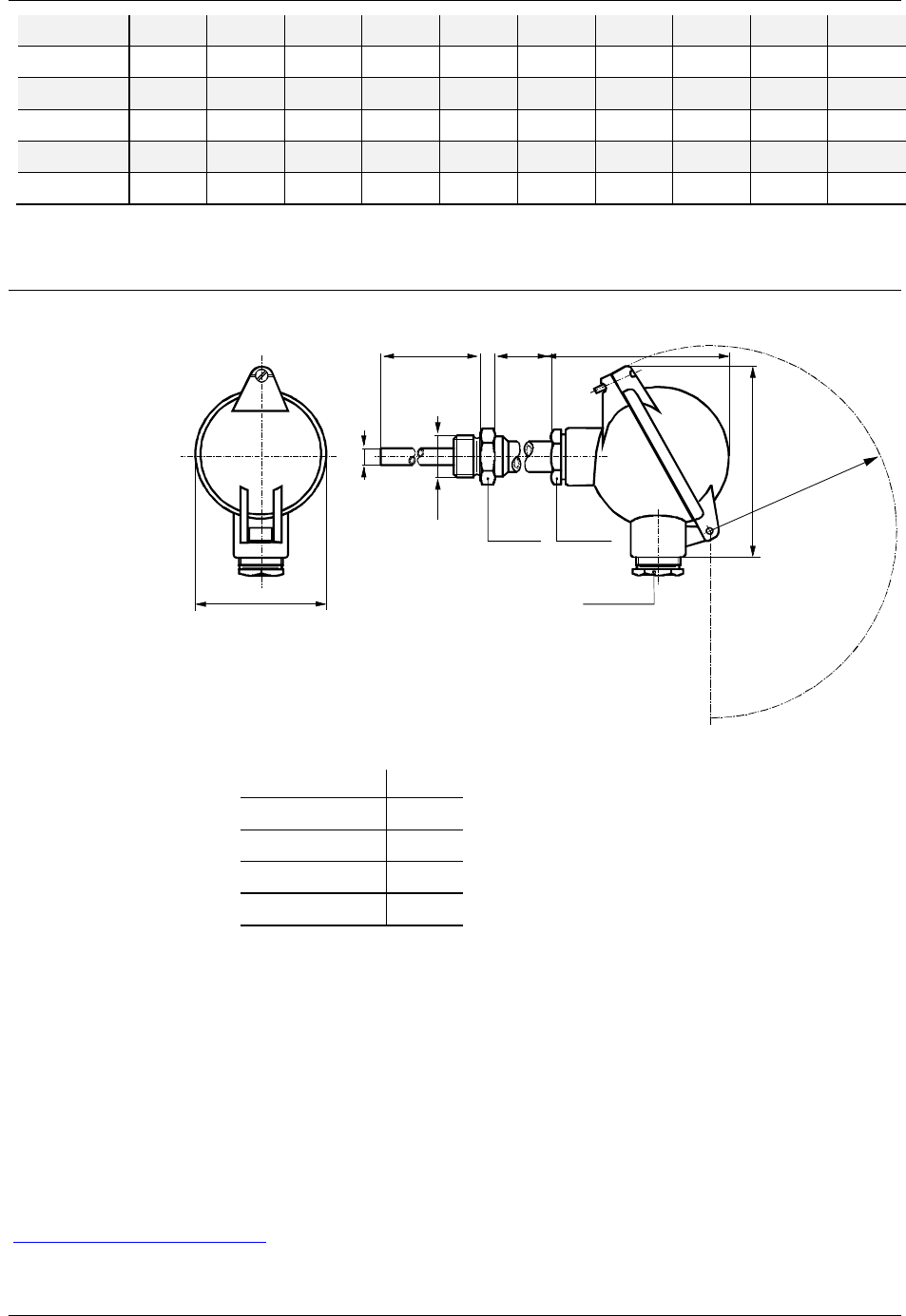

Massbilder (Masse in mm)
A 70 81
ø9
SW 24
92
8
8
M20 x 1,5
1794M01
SW 24
G½"
69
A = Einbautiefe
Typ A [mm]
QAE3010.010 100
QAE3010.016 160
QAE3075.010 100
QAE3075.016 160
