CM2N8305en

05.10.2000

Siemens Building Technologies

Landis & Staefa Division

VISONIK

Building Process Station

BPS/NetBPS

PRV2...

Basic units, no cards

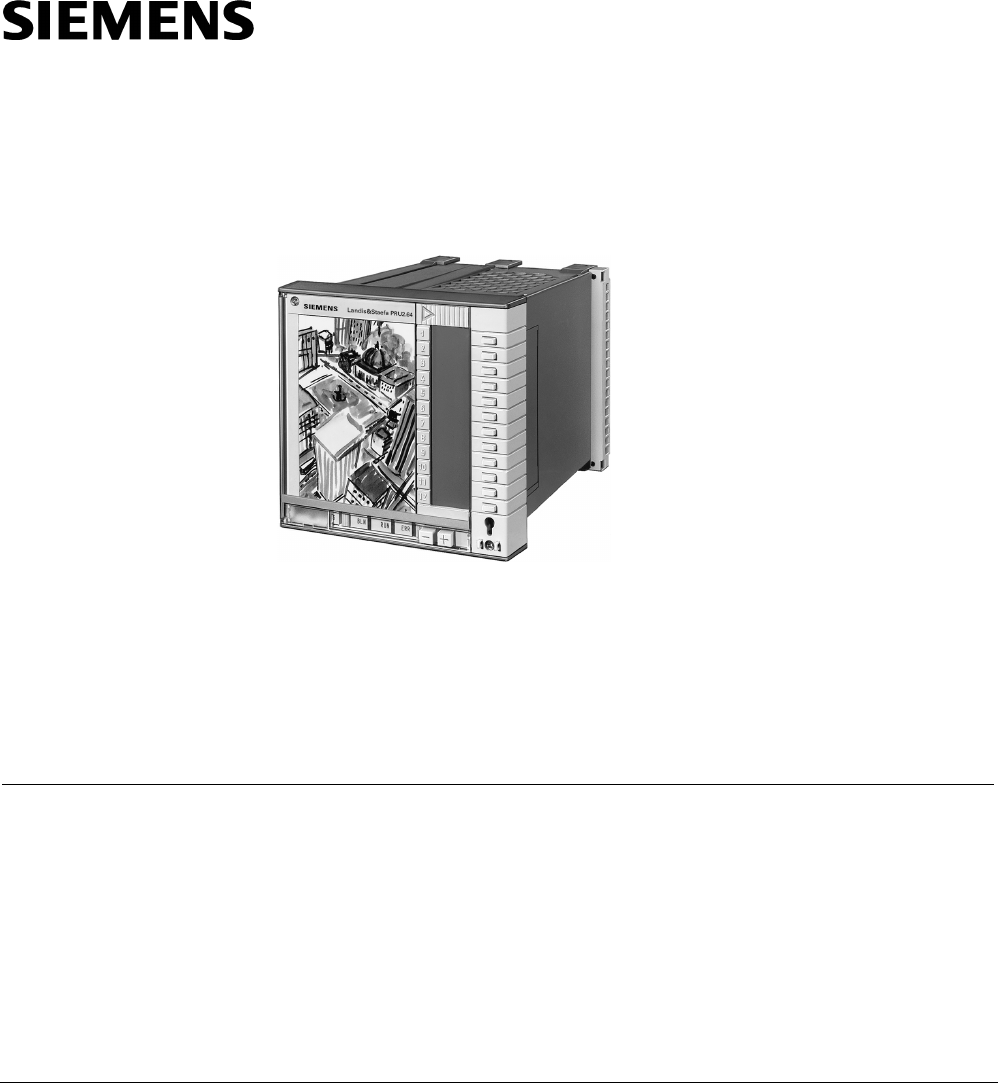

The Building Process Station, short BPS (or NetBPS if equipped with an Ethernet

card), is a programmed DDC station for building automation and control featuring

the following properties:

• Three basic units, tailored to the respective I/O module load

• Plug-in program and communication cards

• Local operation and display via operating cards, terminal, or PC

Variant without P-bus connection for use as a master unit to integrate L&S room

control systems and RWI controllers or third-party systems.

Use

Both the BPS and the NetBPS are used in commercial buildings to execute

sophisticated HVAC and related tasks:

• As autonomous process stations, local or remote via telephony (BPS only).

• Together with other process stations on either Building Level Network (SDLC ring) or

Ethernet with superposed VISONIK Data and Communication Server.

As a master or Communication Front End (CFE) to integrate L&S room control systems

and standard process units (RWI) as well as third-party system.

The BPS can be used in VISONIK systems from DCS V12. The NetBPS requires a

DCS from V20.

Section

VISONIK system family

8212P01

Summary of content (18 pages)

PAGE 1
8 8212P01 305 VISONIK® Building Process Station BPS/NetBPS PRV2...
PAGE 2
VISONIK Building Process Station BPS / NetBPS LON bus NIDES.RX PNB BatiBus M-bus PVC2.2M III II BLN base PVX1.1C III I PRV2... MONOGYR PVX1.2PM Combo base II PRV2.00 PRV2.32 PRV2.64 PRV2.128 Basic units P-bus X1 PRV1 TEC Communication card COM2 FLN bus PVC2.1F 1 .. 16 PTG1. 16 1 .. 32 PTG1. 32 33 .. 64 PTG1. 64 65 .. 96 PTG1. 96 97 .. 112 PTG1.112 EKL-X PTM1... AEROGYR (RWI) Floor Level Network I/O modules with plug-in base Address plug range 1..112 X1 PVA3.
PAGE 3
Type summary Basic units PRV2. ... Designation Basic unit for P-bus and I/O modules, max. 32 LU *) Basic unit for P-bus and I/O modules, max. 64 LU *) Basic unit for P-bus and I/O modules, max. 128 LU *) Basic unit without P-bus connection As a master or CFE to integrate L&S room control systems and RWI controllers as well as third-party system. Type PRV2.32 PRV2.64 PRV2.128 PRV2.00 *) LU = Load unit, 1 LU = 12.5 mA. The PRV2.
PAGE 4
Functions Standard DDC functions The BPS/NetBPS together with the PVA3… program card contains all common DDC standard functions for the planned application range: Functions Description Basic functions When processing the plant operating program, the BPS/NetBPS executes the basic functions together with the connected I/O modules: Signalling, measuring, counting, switching, positioning.
PAGE 5
Equipment combinations Cards I/O modules The following cards can be inserted in the PRV… basic unit to form a BPS or NetBPS. The type of card required depends on the planned application. The system overview in this document as well as the respective cards' data sheets provide help for selection. Card BPS NetBPS Type Data sheet Program card Yes Yes PVA3... N8317 Communication card COM1 Yes No PVC1... N8311 Communication card COM1 No Yes BPS1.
PAGE 6
Technical design Operating voltage AC 24 V The PRV2… basic unit uses AC 24 V safety extra-low voltage "SELV" or protection by extra-low voltage "PELV" as per HD 384. I/O module supply The basic units with P-bus connection supply DC 24 V to the connected I/O modules via the P-bus. The basic unit's load by one I/O module is indicated with load units at 12.5 mA each. The maximum load for the basic unit types with P-bus is available in section "Type summary".
PAGE 7
Data exchange with I/O modules Data exchange with the I/O modules occurs via the three-core P-bus (process bus). This bus is described in detail in data sheet 8022 "Process Bus". I/O modules on the same P-bus have their own address in the number range of 1 to max. 255. The addresses are set using address plugs in the I/O modules. Refer to "Basic Data of the I/O Module System", data sheet 8102.
PAGE 8
Mechanical design Front view The following illustration shows the mechanical structure of the basic unit consisting of electronics unit, housing, and terminal block as well as an optional base plate for wall mounting: 15 16 13 12 9 8 7 6 5 3 1 17 14 8411Z01 11 2 10 4 1 Transparent front cover with slots for cover card 2 Removable insert for tool connection on closed front cover 3 Electronics unit 4 Swing-out compartment 5 Exchangeable system label 6 Battery compartment for batteries of t
PAGE 9
Rear view The following picture shows the mechanical structure from the rear: 7 8 9 10 11 6 4 3 2 8411Z02 1 12 5 1 2 3 4 5 6 7 8 9 10 11 12 Basic concept Terminal block PRX1.1P (PVX1.2P for PRV2.
PAGE 10
Operating and display elements The illustration below shows the front of the basic units and the respective operating and display elements: 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11 S 5 BLN 6 7 8411Z03 12 RUN ERR 8 9 10 11 12 1 Compartment for operating cards 2 Slider to open the cassette 3 12 line, four characters LCD display 4 Operating buttons to retrieve and save parameters 5 Plug connection for tool cable with V.24/V.
PAGE 11
Operating cards The following illustration shows an operating card set with an example for an application-specific printed operating card: Station: Heat gen ... No.9 Boiler_2 Manual switch Auto 9 6 Off 1..4 Set value for manual control MinLimtnVle for boiler temp. Fault status Reset pulse Boiler_Pump_2 Manual switch Auto Off Fault status Reset pulse BOILER 2 Service Service and diagnostic cards Ad 9 Pg 6 8411Z04en 1 The accessories also include service and diagnostic cards for service.
PAGE 12
Load units of I/O modules The PRV… basic units with P-bus connection supply DC 24 V to the connected I/O modules via the P-bus. The I/O module load units are available in the following documents: − N8102: "Basic Data of the I/O Module System" − N8111 … N8171: data sheets on the individual I/O modules The maximum number of load units for the basic unit types with P-bus is available in section "Type summary". P-bus connections for PRV2.
PAGE 13
Commissioning notes Observe all country-specific safety regulations to prevent injuries and equipment damages. Battery The battery is inserted in the unit upon delivery, but separated from the electrical circuit with an isolating strip expanding at the upper compartment corner. After opening the compartment, pull off the strip from the closed battery compartment.
PAGE 14
Technical data General data Supply Function data Operating voltage Safety extra-low voltage "SELV" or protection by extra-low voltage "PELV" as per Transformer sizing as per Secondary fusing (external) Frequency Power consumption PRV2.00 PRV2.32 * PRV2.64 * PRV2.128 * * at max. P-bus load P-bus supply in basic unit Number of load units at 12.5 mA PRV2.32 PRV2.64 PRV2.
PAGE 15
Standards Product standards Safety of information technology equipment EN 60 950 Weight and dimensions Electromagnetic compatibility (EMC) Emissions Immunity Conformity Electromagnetic compatibility 89/336/EEC Weight without packaging and cards Dimensions 1.
PAGE 16
Internal diagrams PRV2.00 Basic unit without P-bus connection: 8305G01 PRV2.00 Tool X I G G0 II III II III PD PU PC AC 24 V PRV2.32 and PRV2.64 Basic units with P-bus connection: 8305G02 PRV2.32/PRV2.64 Tool X I PRV2.128: G G0 PD PU PC AC 24 V P-Bus Basic unit with two P-bus connections: 8305G03 PRV2.128 Tool X I G G0 AC 24 V Internal diagrams for optional cards II III PD2 PU2 PC2 PD1 PU1 PC1 P-Bus 2 P-Bus 1 I Terminal block I: PRX1.1P (PVX1.2P for PRV2.
PAGE 17
Connection diagrams Basic unit PRV2... and I/O modules The following illustration shows the principal wiring: See the mounting and installation guide M8017E and data sheet N8022E for details. 8305A01 SP AC 24 V G PD PU PC N P-Bus G0 PD PU PC G G0 U SN N U SP SN Basic unit PRV2...
PAGE 18
Dimensions Front mounting PRV... Standard mounting as per DIN 43 700 (138x138 mm): R1 145 272,5 24 ,5 min. 80 138 138 +1 0 8411M01 144 137 166 +1 0 max R2 152,6 30 24 160 214 Minimum distance to the next recess: Top and bottom: 40 mm; vertical: 80 mm Wall mounting PRV... Base plate PRM1.1W is required for wall mounting: 121 272,5 24 ,5 8411M02 R1 188 min.
