Service and maintenance
6.1 Maintenance
PM230 Power Module, IP55
Hardware Installation Manual, 12/2016, A5E35319202B AB
45
Procedure
1. Open the front door of the inverter
2. Remove the operator panel from the Power Module.
3. Disconnect all the cables from the Power Module.
4. Place the Power Module down on a clean and secure surface with the front side facing
downwards.

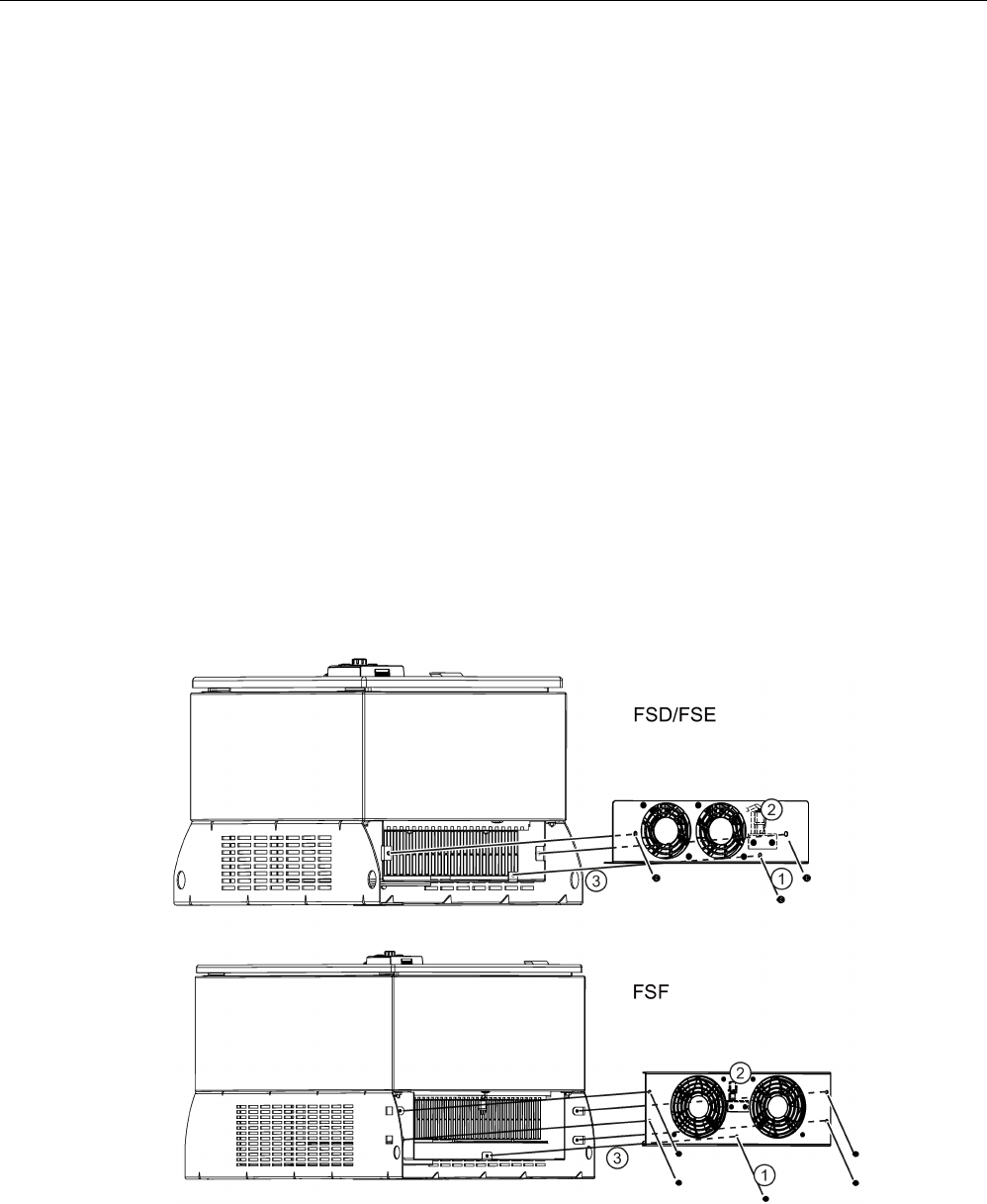

5. Use the Torx screwdriver to loosen the fixing screws of the fan
①.
6. Move the fan forward and loosen the power supply connection
②.
For the frame sizes FSD/FSE, the power supply connection is located to the right, next to
the fans on the rear side of the fan enclosure plate.
For the frame size FSF, the power supply connection is located between the two fans on
the rear side of the fan enclosure plate. The connection is shown with cross-hatching,
because it is not visible from the front of the fan enclosure plate.
7. Pull the fan out
③.
8. Install the new fan in reverse order.
It is imperative to use the new screws and secure them using the screw retainer varnish
delivered with the fan.
Now you have changed the fan.
