Connecting
5.3 Connecting the line and motor cable at the inverter
PM230 Power Module, IP55
Hardware Installation Manual, 12/2016, A5E35319202B AB
33
5.3

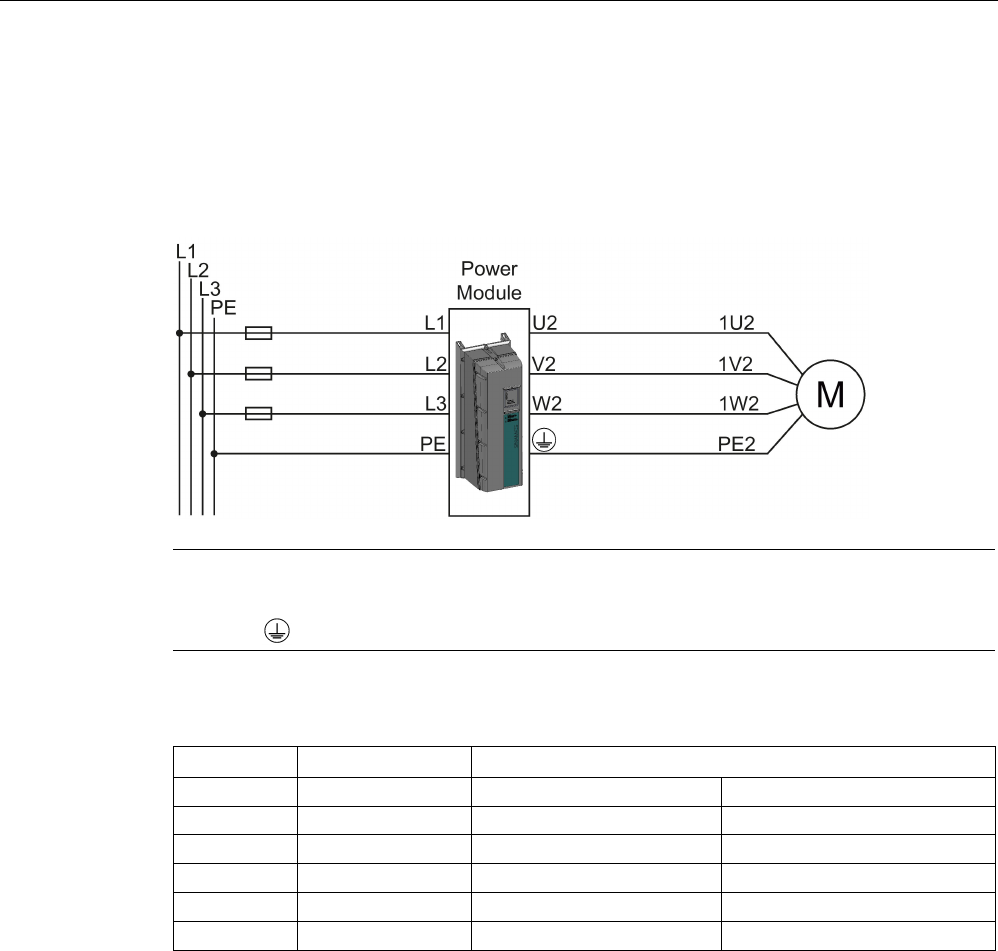

Connecting the line and motor cable at the inverter
5.3.1
Connection overview
Note
Symbol for PE
The sign "
" is equivalent to the designation "PE".
Table 5- 1 Connection types, maximum conductor cross-sections and tightening torques
Inverters
Connection
Cross-section / tightening torque
FSA
Terminal
1 … 2.5 mm
2
/ 0.5 Nm
18 … 14 AWG / 4.4 lbf in
FSB
Terminal 2.5 … 6 mm
2
/ 0.6 Nm 14 … 10 AWG, 5.3 lbf in
FSC
Terminal
6 …16 mm
2
/ 1.5 Nm
10 … 5 AWG / 13.3 lbf in
FSD
Cable lug 10 … 35 mm
2
/ 6 Nm 5 … 2 AWG / 53 lbf in
FSE
Cable lug
25 … 50 mm
2
/ 6 Nm
3 … 2 AWG / 53 lbf in
FSF
Cable lug
35 … 120 mm
2
/ 13 Nm
2 … 4/0 AWG, 115 lbf in
