4.2 EMC compliant installation of a machine or system
PM230 Power Module, IP55
Hardware Installation Manual, 12/2016, A5E35319202B AB
21
4.2
EMC compliant installation of a machine or system
EMC compliant connection of a Power Module

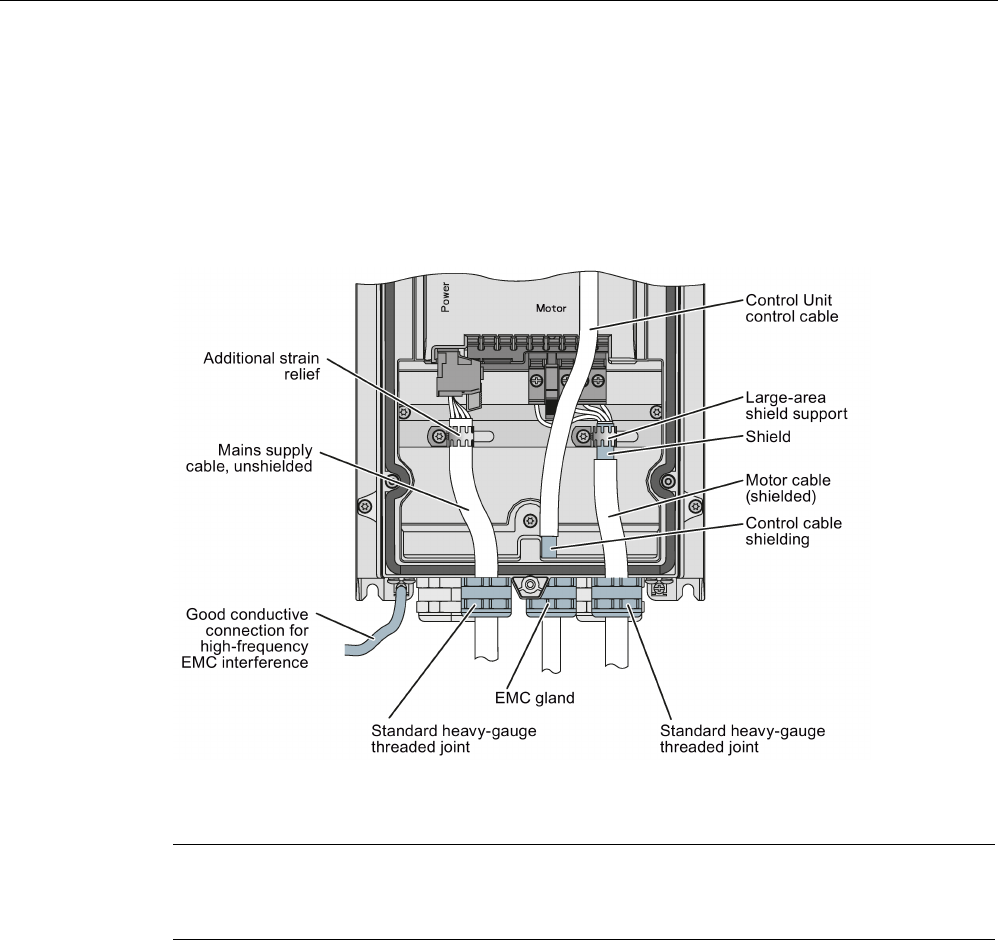

The following diagram shows the EMC compliant installation of a Power Module with degree
of protection IP55.
Figure 4-1 EMC-compliant connection of an PM230 Power Module, degree of protection IP55
Note
You must use a shielded cable if you use the control termi
nals of the Control Unit. Connect
the shield to the gland plate via an EMC screw.
