Siemens Modulating refrigerant valves with magnetic actuator, PN 32 CE2N4722en
Smart Infrastructure 2020-12-21
Mounting notes
Mounting instructions are enclosed with the valve:
· Nr. 35551 / A6V12108054 (valve)
· Nr. 35541 (ZM.. terminal housing)
90°
4722Z01
90°

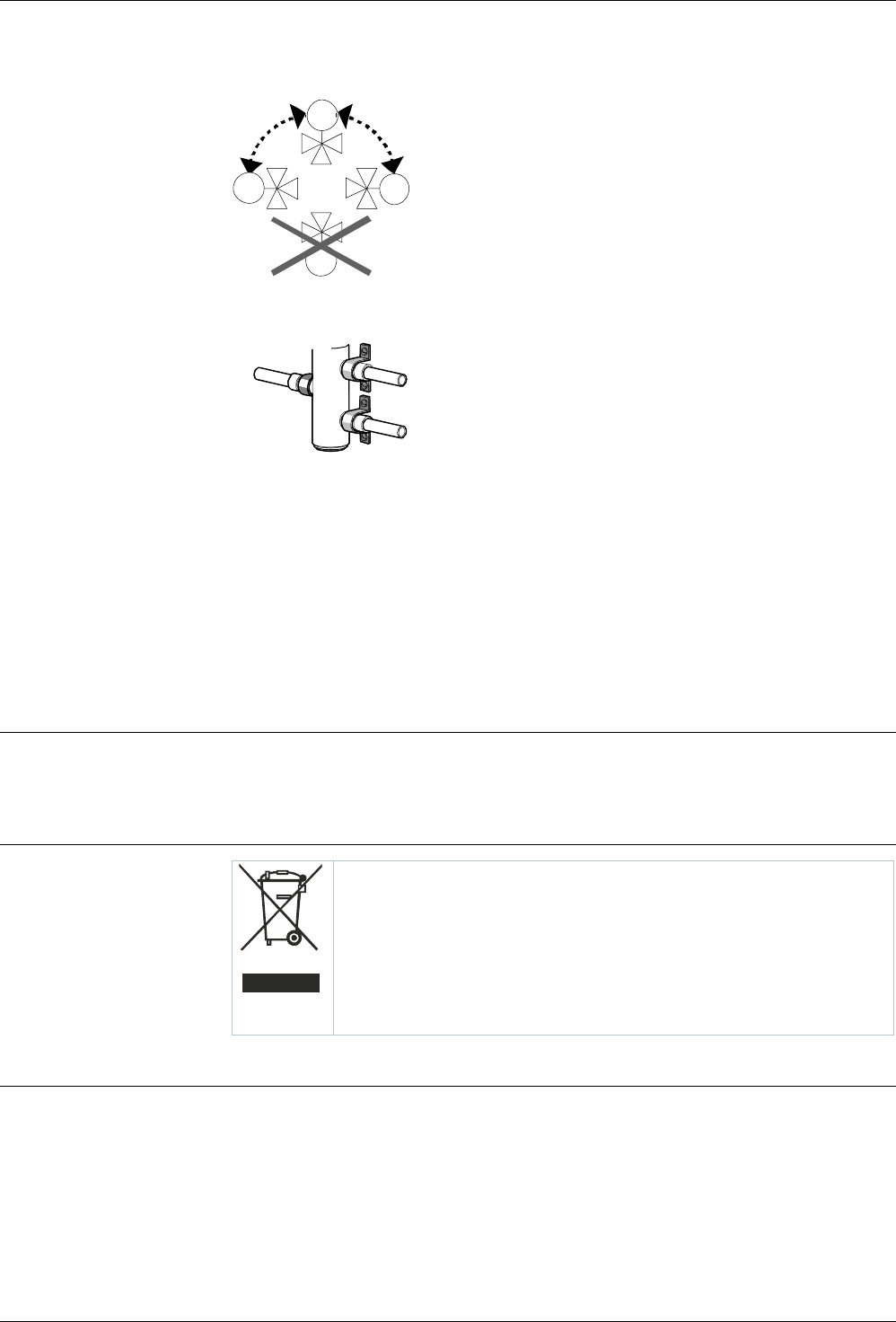

· The refrigerant valves can be mounted in any
orientation, but upright mounting is preferable.
· The pipes should be fitted such that the alignment does
not distort the valve connections. The valve body
should be fixed such that it cannot vibrate. Vibration can
lead to burst connection pipes.
· Before soldering the pipes, ensure that the direction of
flow through the valve is correct.
· The pipes must be soldered with care. To avoid dirt and
the formation of scale (oxide), inert gas is
recommended for soldering.
· The flame should be large enough to ensure that the
junction heats up quickly and the valve does not get too
hot.
· The flame should be directed away from the valve.
· During soldering, cool the valve with a wet cloth, for
example, to ensure that it does not become too hot
· Port 2 must be sealed off when the valve is used in a
straight-through application (1 ® 3).
· The valve body and the connected pipework should be
lagged.
·
The actuator must not be lagged.
4721Z02
Always switch off the power supply before connecting or disconnecting the ZM..
terminal housing.
Maintenance
The M3FK..LX.. modulating control valves are maintenance-free.
The valve cannot be repaired. It has to be replaced as a complete unit.
Disposal
The device is considered electrical and electronic equipment for disposal
in terms of the applicable European Directive and may not be disposed
of as domestic garbage.
· Dispose of the device through channels provided for this
purpose.
· Comply with all local and currently applicable laws and
regulations.
Warranty
Application-specific technical data must be observed.
If specified limits are not observed, Siemens will not assume any responsibility.
Caution
Repair
