Proceed as follows for calibration:
1. Switch off the brightness control
and the lights.
2. Measure the current brightness under
the DALI brightness sensor at desktop
level.
3. Obscure the room to about half of the
brightness set point or more by closing
the blinds.
4. Switch on the lights (not the controller!)
and dim to the brightness set point.
5. Set the current brightness value (lux)
in the plug-in via “commissioning”
➜
“channel, sensors”
➜
“calibrate”.
Click OK in the dialog window of
the plug-in and download the device.
6. The brightness sensor is now calibrated.
Check the brightness via the object
“Brightness, actual value”. This value
should roughly equal the measured
brightness.

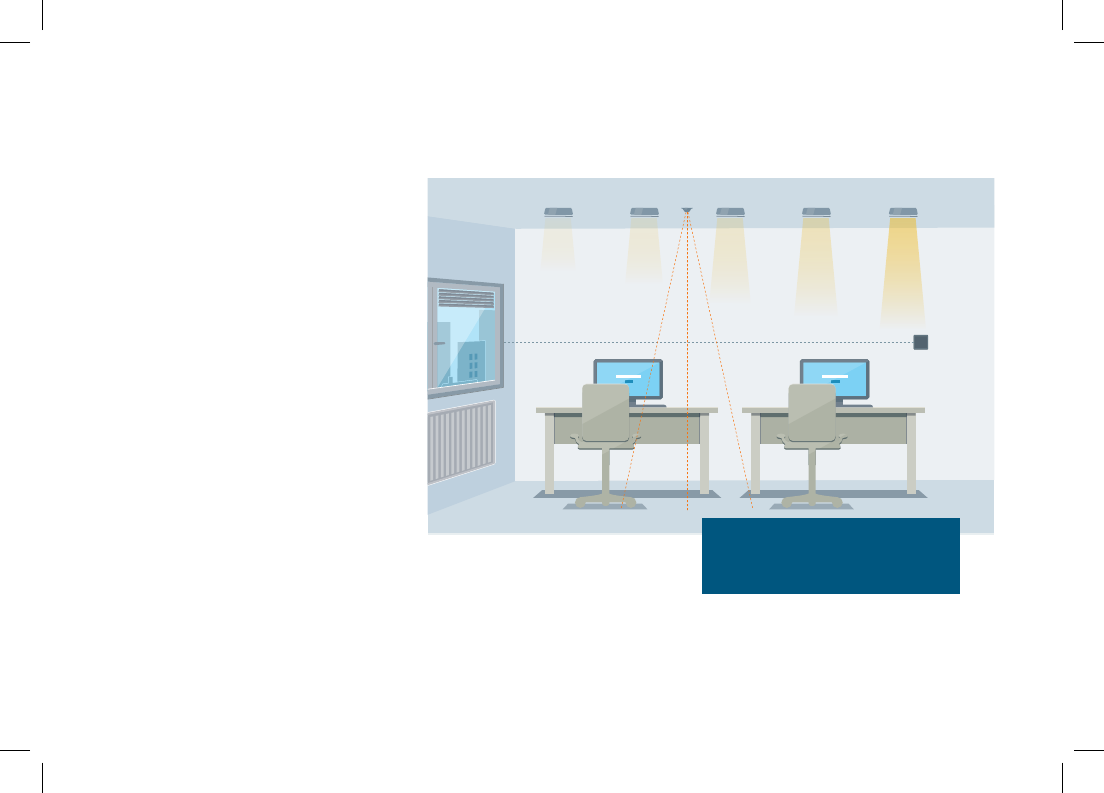

Commissioning constant lighting control
Daylight 500 LUX
Artificial
light
A B C D E
Constant control for
up to five groups of lights
