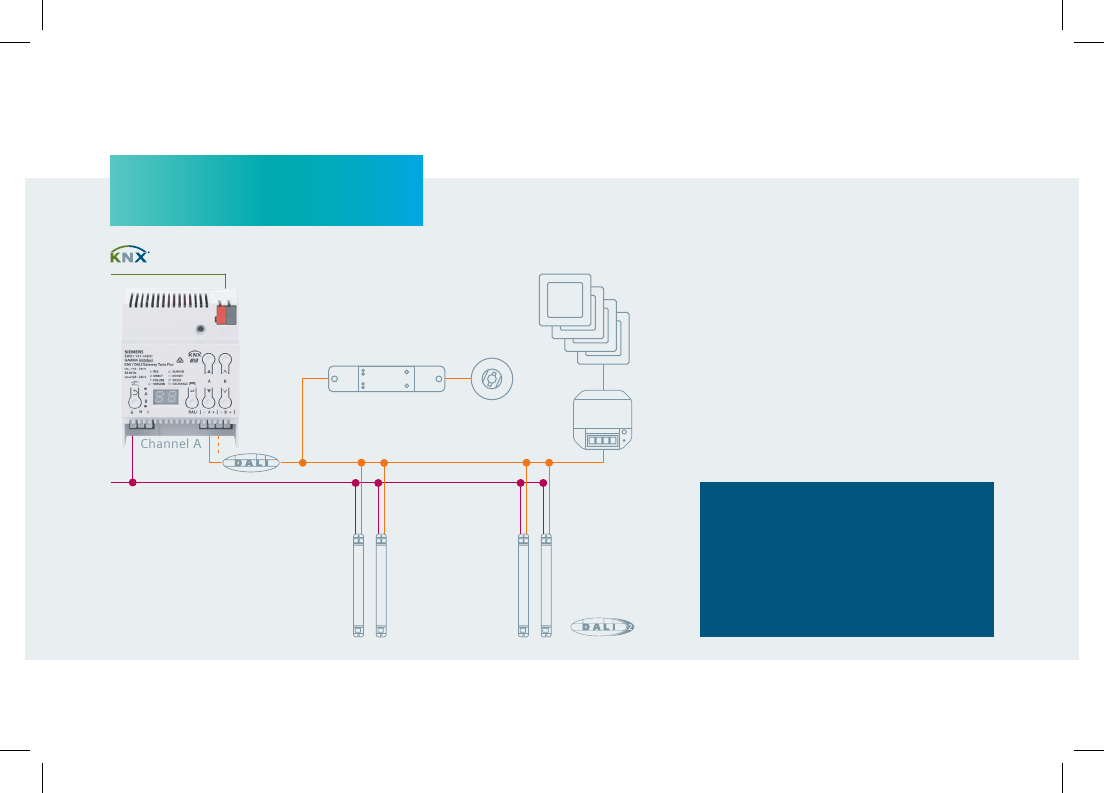

DALI power supply per channel
KNX/DALI Gateway Button
AC 230 V
Channel A
Examples of max. dimensioning
per DALI channel:
64 ECG (at 2 mA) + 8 DALI Combo sensors
(at 6 mA) + 2 DALI Switch inputs (at 6 mA)
47 ECG (at 2 mA) + 8 DALI Combo sensors
(at 6 mA) + 8 DALI Switch inputs (at 6 mA)
41 ECG (at 2 mA) + 2 DALI Combo sensors
(at 6 mA) + 16 DALI Switch inputs (at 6 mA)
23 ECG (at 2 mA) + 8 DALI Combo sensors
(at 6 mA) + 16 DALI Switch inputs (at 6 mA)
The maximum number of DALI
devices is limited to the maximum
guaranteed DALI power supply of
190 milliamps (mA) per channel.
The maximum current according
to the standard is 250 mA.
DALI push-button input 4x
(max. 16 per channel)
Sensor
head
DALI combo sensors
(max. 8 PIR per channel)
max. 190 mA per DALI channel
max. 64 ECG
à 2 mA per channel
Channel B
