Synco™ living

RF adapter plugs, dimming

KRF961..

• Radio-controlled adapter plugs for switching and dimming electrical lights

up to 300 W

• RF communication based on KNX standard (868 MHz, bidirectional)

• Mains-powered AC 230 V

Use

• For integration into the Siemens Synco living system

• For remote control of dimmable lights connected to power outlets

• Operation via KNX-RF or manually

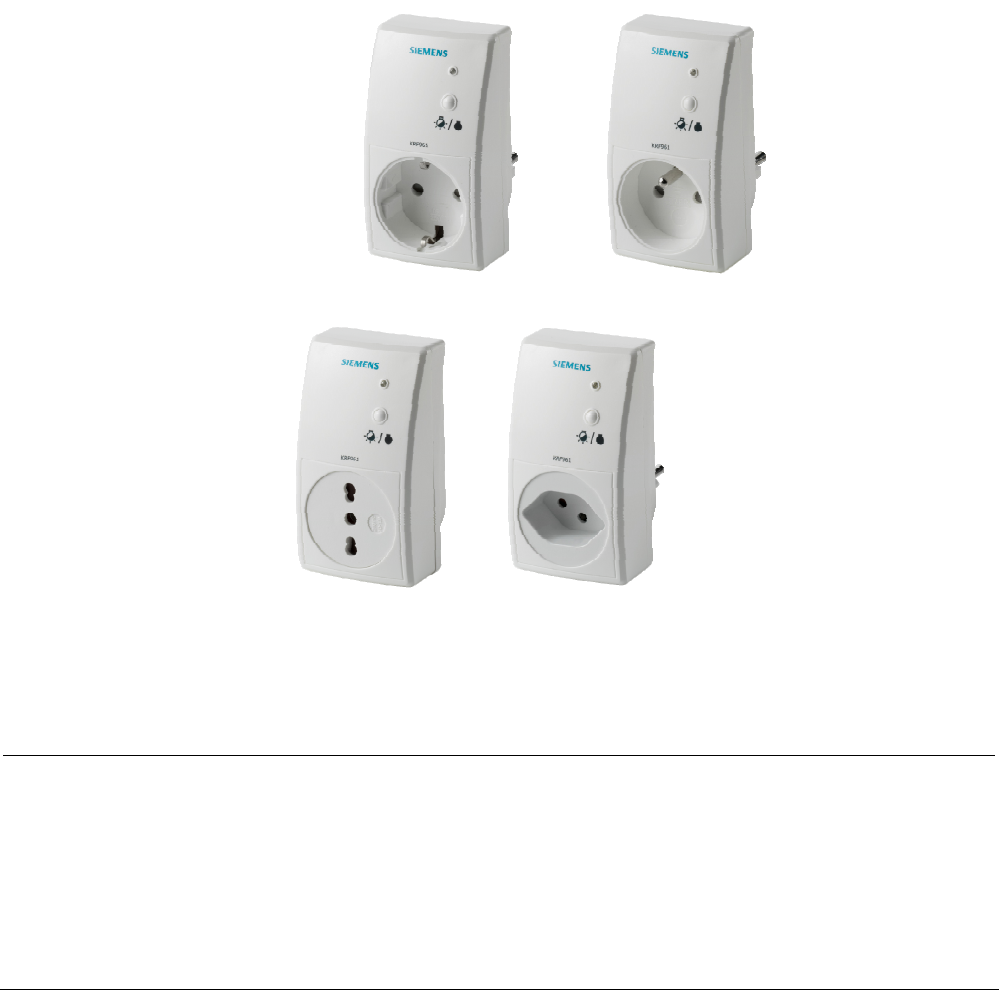

Function LED

Function button

Summary of content (6 pages)

PAGE 1
s 2 719 Function LED Function button Synco™ living RF adapter plugs, dimming KRF961.. • Radio-controlled adapter plugs for switching and dimming electrical lights up to 300 W • RF communication based on KNX standard (868 MHz, bidirectional) • Mains-powered AC 230 V Use • For integration into the Siemens Synco living system • For remote control of dimmable lights connected to power outlets • Operation via KNX-RF or manually CE1N2719en 05.11.
PAGE 2
Equipment combinations The RF adapter plug KRF961 is for use with the Siemens Synco living system. For detailed information about equipment combinations, refer to the Data Sheet on the QAX910 central apartment unit (CE1N2707en). Ordering When ordering, please give quantity, product name and type reference. Scope of delivery The KRF961 is supplied complete with Mounting Instructions. Type summary The RF adapter plug KRF961 is available in the following versions: Product No.
PAGE 3
Functions Main function The KRF961 is used for remote control of electrical lights connected to power outlets. Each KRF961 can be dimmed via the central apartment unit, either individually or in groups. Binding The KRF961 signs on at the central apartment unit, thereby integrating itself into the wireless system. The binding process is triggered by pressing the function button. The process is indicated by the function LED.
PAGE 4
Engineering and operating notes Mounting location • • • • • Mounting The KRF961 is suited for use with all types of commercially available power outlets (note type of outlet!). Commissioning For commissioning, the KRF961 must be plugged into a power outlet at the location where it is used. Protection against overheating and overloads The device is protected against overheating and overloads. In the case of overheating or overload, the device’s output is reduced.
PAGE 5
Technical data Power supply Operating voltage AC 230 V (±15%) Frequency 50 Hz Power consumption (excl. external load) Max. 1.
PAGE 6
Dimensions 2719M01 Dimensions in mm 6/6 © 2008 Siemens Switzerland Ltd Siemens Building Technologies RF adapter plugs, dimming KRF961 Subject to change CE1N2719en 05.11.
