User Manual

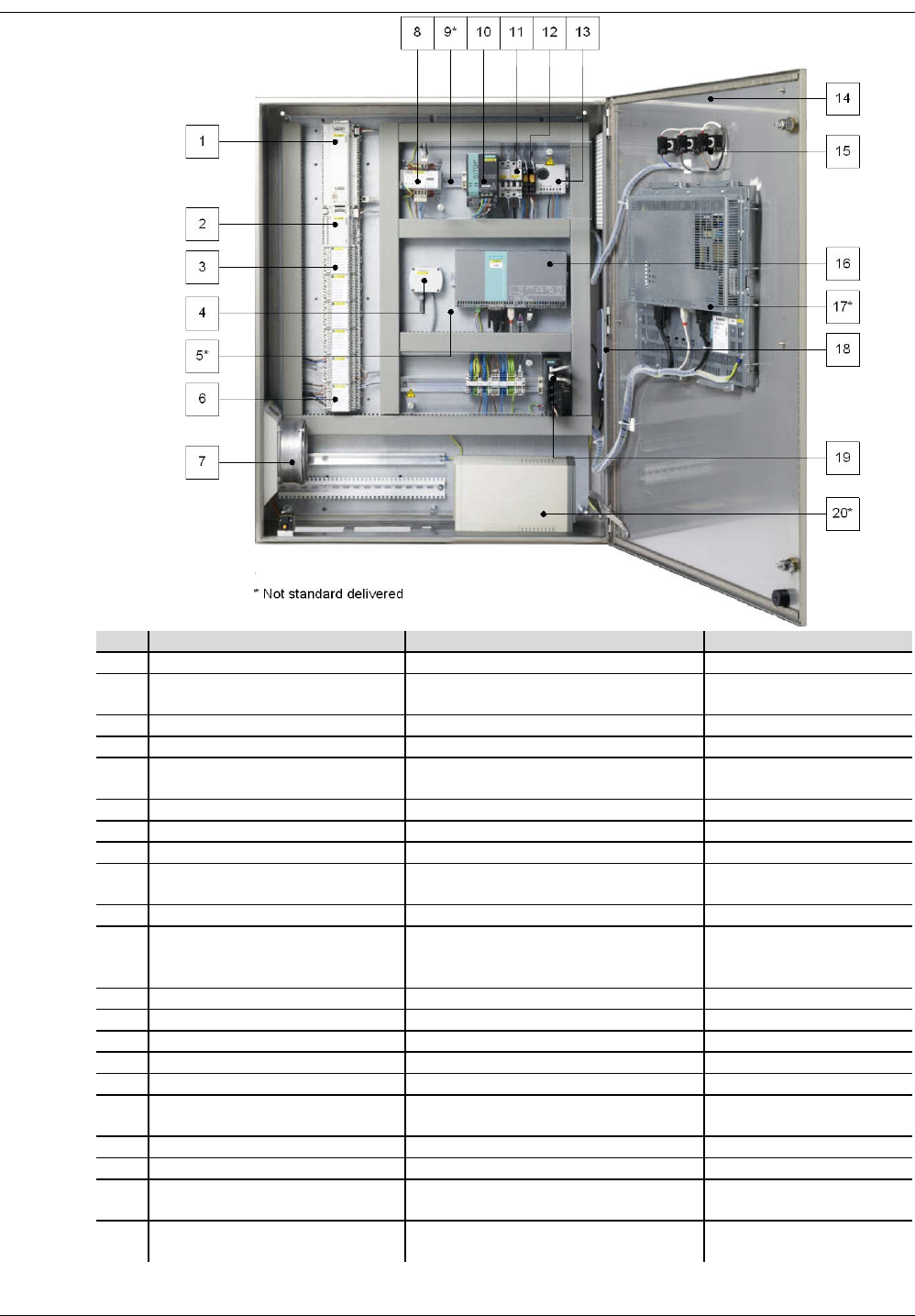

Components
Device
Type
Data sheet
1
DDC controller
PXC100-E.D
01_CM1N9222en_10
2
Power supply module 1.2 A,
Fused 10A
TXS1.12F10
02_CM2N8183en_05
3
Super universal modules
TXM1.8X
03_CM2N8174en_09
4
Temperature sensor
QAC3171
04_CE1N1814en_02
5*
KVM Extender
(optional)
Voyager KVM Extender singlehead
USB
05_1036-121U_en
6
Relay module
TXM1.6R
06_CM2N8175en_07
7
Fan and filter
Rittal, SK3324.107 + Metal housing
07_Rittal SK3324107en
8
Power supply 24 VAC
SITAS transformer, 160 VA
08_4AM_Trafo_en
9*
Power supply, 5 VDC
(Option KVM Extender)
Logo, 3 A
09_6EP1311-1SH02_en
10
Power supply 24 VDC
SITOP modular, 5A
10_6EP1333-3BA00_en
11
Fuses
Aux. Switch - 5ST3010
Circuit Breaker - 5SY4110-7
Circuit Breaker - 5SY4113-7
11_Fuses
12
Voltage control
Plug-in relay, LZS:RT4B4xxx
12_PlugInRelay
13
Enclosure thermostat
Rittal, SK3110.000
13_Rittal SK3110000_en
14
Stainless steel cabinet
Rittal, AE1016.600
14_Rittal AE1016600_en
15
Lamp indicators
3SB3244-6AAx0
15_LampIndicator
16
SIMATIC Microbox 427D
6AG4140-6BD00-0PA0
16_Microbox_427D_en
17*
19“ Touch panel
(optional)
SIMATIC Touch Panel 19“
6AV7861-3TB00-1AA0
17_FlatPanel_en
18
External hard disk, >100 GB
External SSD Flash Drive, USB 3.0
18_SSDFlash_en
19a
Ethernet switch, unmanaged
Scalance X005 entry level
19a_Scalance_X005
19b
Ethernet switch, managed
(optional)
Scalance X208
19b_Scalance_X200
20
UPS
(optional)
APC, Smart-UPS SC 420
20_UPS
