Refer to "Technical design" and "Commissioning notes" in this Data Sheet.

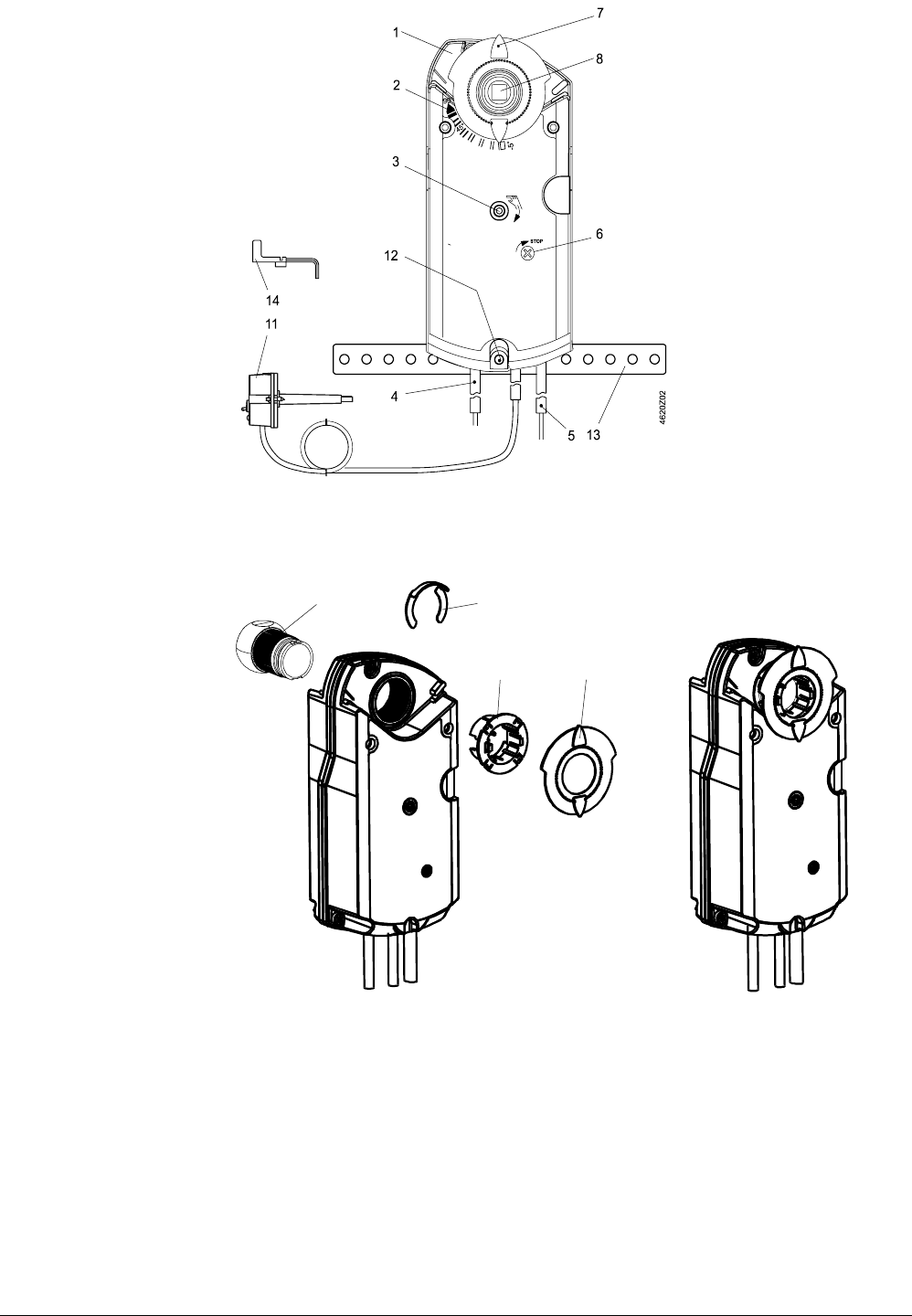

1 Housing
2 Angle of rotation scale 0°...90°
3 Hexagon socket for manual
override
4 Connecting cable for power
supply
5 Connecting cable for auxiliary
switches
6 Stop shaft for gear train
7 Position indicator
8 Shaft adapter
9 Locking ring for shaft adapter
10 Adapter for position indicator
11 Temperature monitoring unit
12 Pin
13 Mounting bracket
14 Hex wrench for manual
override
8
9
10
7
Setting and operating
elements
Arrangement for
shaft adapters
