5.2 Connecting the line and motor cable at the inverter

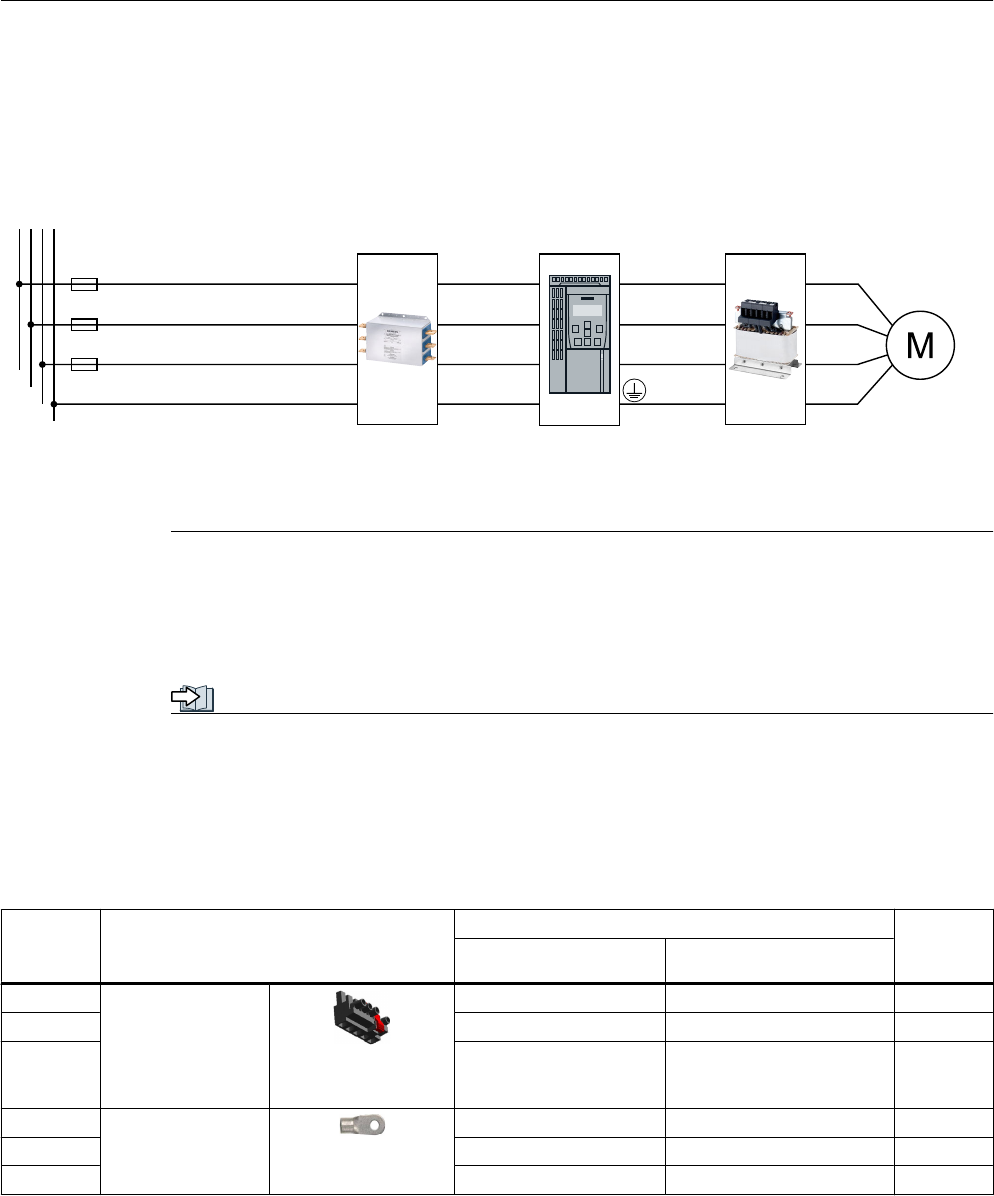

5.2.1 Connection overview
/LQHILOWHU 2XWSXWUHDFWRU,QYHUWHU
8
9
:
3( 3(
:
9
8
/
/
/
3( 3(
/
/
/
/
/
/
3(
:
9
8
3(
/
/
/
Figure 5-2 Connection overview
Note
Limit values for EMC classes, Category C2 or C1
In order to comply with limit values for EMC classes, Category C2 or C1, for certain Power
Modules, ferrite cores must be installed when connecting to the line supply. Carefully observe
the data in the following section:
Inverter applications (Page 72)
5.2.2 Inverter terminals
Table 5-1 Connection, cross-section and tightening torque for PM230 Power Modules
Inverters Connection Cross-section, tightening torque Stripped
insulation
length
Metric Imperial
FSA Line supply, motor
Plug connector with
screw terminals
1 … 2.5 mm
2
, 0.5 Nm 16 … 14 AWG, 4.5 lbf in 8 mm
FSB 1.5 … 6 mm
2
, 0.6 Nm 16 … 10 AWG, 5.5 lbf in 8 mm
FSC 6 …16 mm
2
, 1.3 Nm 10 … 6 AWG, 12 lbf in 10 mm
FSD Line supply, motor
Cable lug
10 … 35 mm
2
, 6 Nm 7 … 2 AWG, 53 lbf in --
FSE 25 … 50 mm
2
, 6 Nm 3 … 1 AWG, 53 lbf in --
FSF 35 … 120 mm
2
, 13 Nm 2 … 4/0 AWG, 115 lbf in --
Connecting
5.2 Connecting the line and motor cable at the inverter
Power Module PM230, IP20 / Push-through technology (PT)
46 Hardware Installation Manual, 08/2016, A5E34331322B AB
