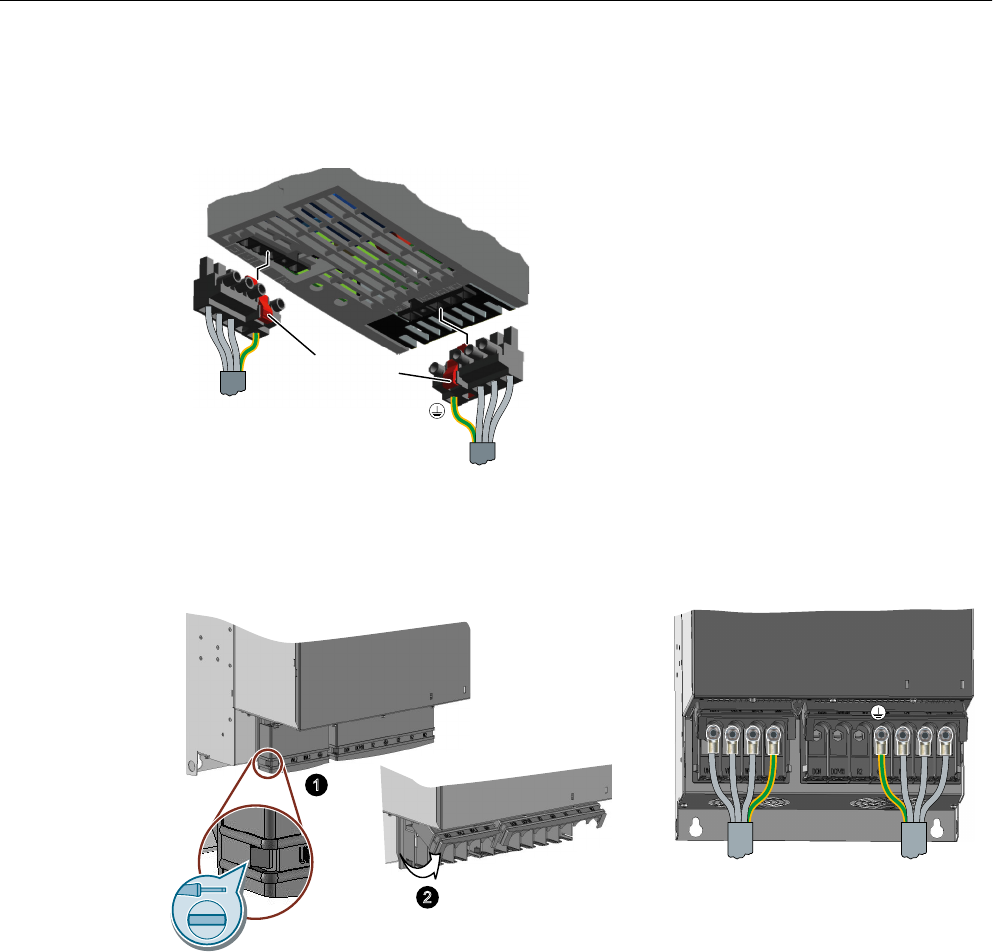

Connections for frame sizes FSA … FSC
5HOHDVHOHYHU
/LQHVXSSO\
0RWRU
8
9
:
3(
/
/
/
The Power Modules are equipped with withdraw‐
able plug connectors that cannot be inadvertently
interchanged.
To remove a plug connector, you must release it
by pressing on the red lever.
Connections for frame sizes FSD … FSF
The line and motor connections have covers to prevent them from being touched.
/LQHVXSSO\ 0RWRU
/ / / 89:3(
You must open the cover to connect the line and motor:
1. Release the catches on both sides of the covers using a screwdriver.
2. Swivel the covers upwards.
Close the covers once you have connected the line and motor.
Connection rules for Power Modules, FSD … FSF
Use UL-listed cable lugs (ZMVV) with the appropriate current rating for connecting the line and
motor cables.
The covers of the power connections must be closed in order that the IP20 degree of protection
is maintained.
Connecting
5.2 Connecting the line and motor cable at the inverter
