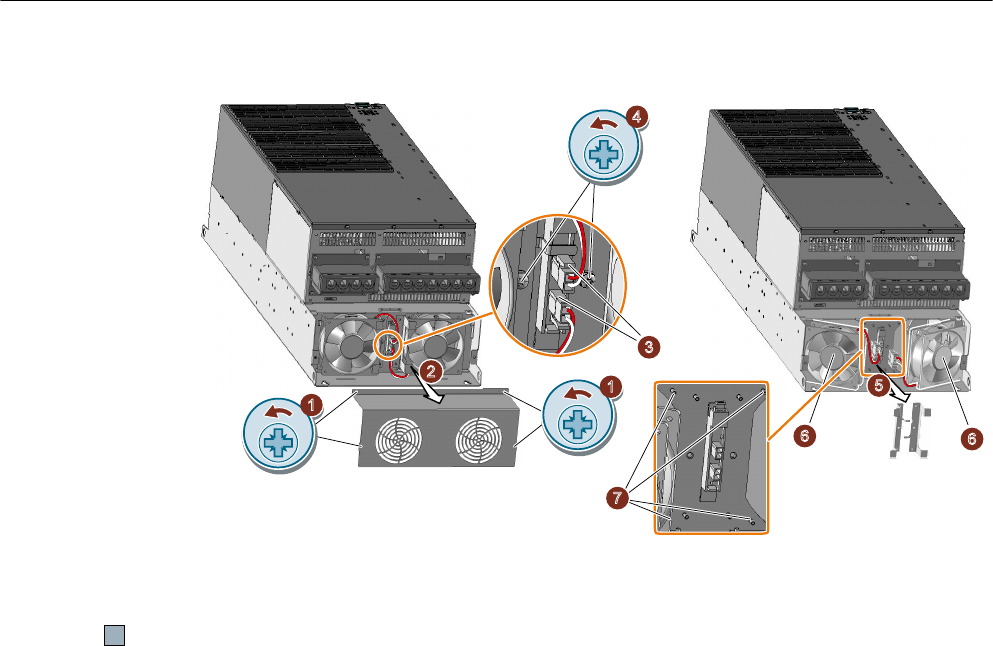

7. Swivel the fan sideways towards the outside and then remove it from the inverter ⑥
8. Install the new fan in the inverse sequence.
9. Additionally secure the fan using four M3 nuts on the guide bolts ⑥.
You have replaced the fan.
Service and maintenance
6.2 Replacing the cooling fan
Power Module PM230, IP20 / Push-through technology (PT)
Hardware Installation Manual, 08/2016, A5E34331322B AB 55
