If you do not use the optional mounting frames, then you must ensure that the required degree
of protection is complied with using other appropriate measures.
Mounting instructions are provided in the following section:
Mounting frames for Power Module with push-through technology (Page 79)

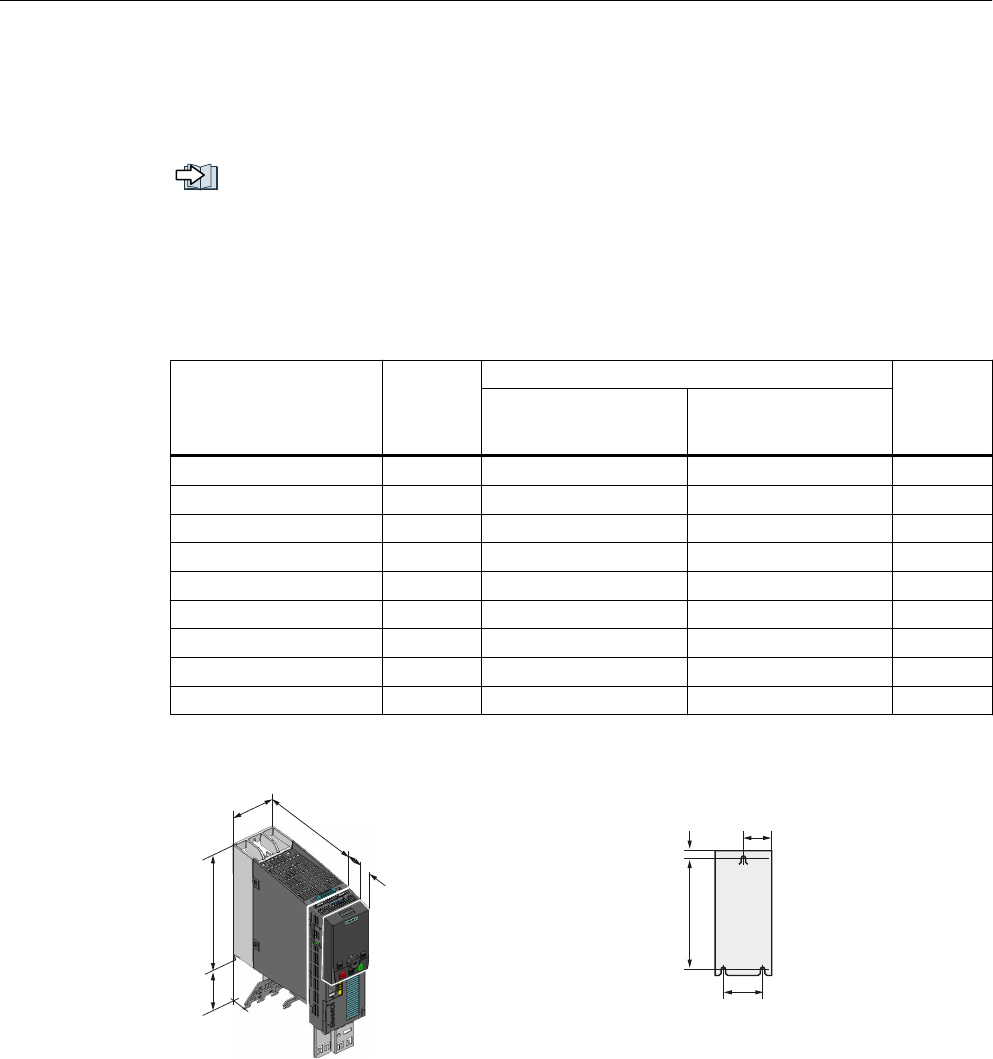

4.4.1 Dimension drawings and drilling dimensions for IP20 Power Modules
Table 4-1 Mounting dimensions without Control Unit [mm]
Frame size Width Height Depth
without
Control
Unit (CU)
without shield plate with shield plate
FSA 73 196 276 165
FSB 100 292 370 165
FSC 140 355 432 165
FSD without filter 275 419 542 204
FSD with filter 275 512 635 204
FSE without filter 275 499 622 204
FSE with filter 275 635 758 204
FSF without filter 350 634 792 316
FSF with filter 350 934 1092 316
The following dimension drawings and drilling patterns are not to scale.
+HLJKW
:LGWK
'HSWK
6KLHOG
SODWH
0RXQWLQJGLPHQVLRQV
'ULOOLQJGLPHQVLRQV
)6$
&8
23
K F
E
