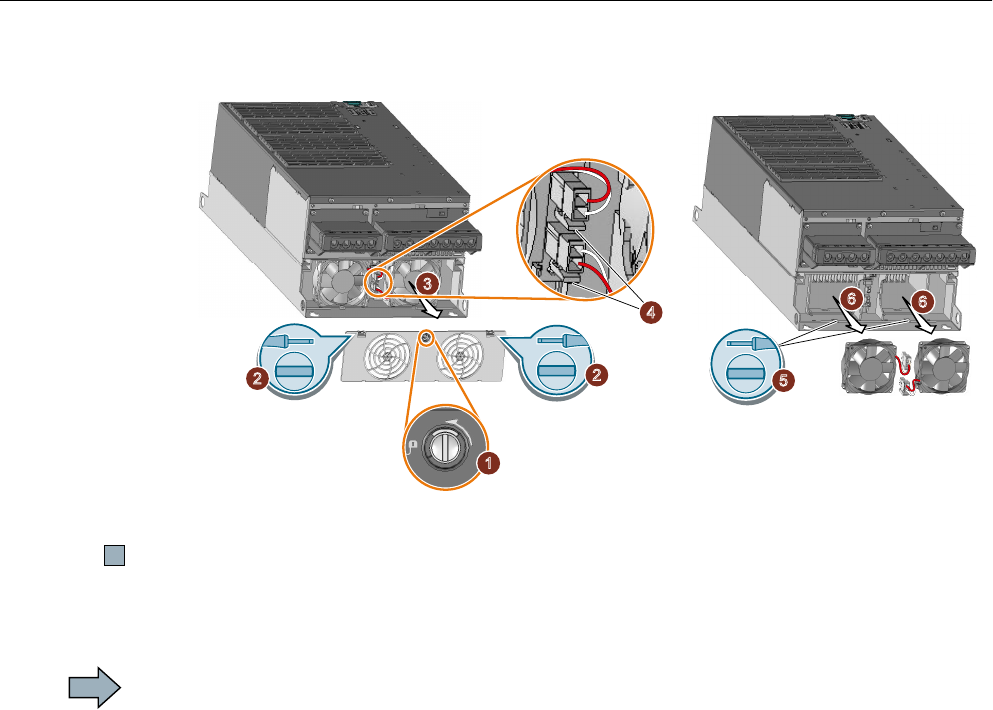

7. Remove the fan from the device ⑥
8. Install the new fan in the inverse sequence.
You have replaced the fan.
Replacing the fan for inverters, frame size FSF
Procedure
1. Switch-off the inverter, and wait 5 minutes until the DC link capacitors have been discharged.
2. Disconnect all of the cables from the Power Module.
3. Release the four screws and remove the fan cover plate ①, ②
4. Remove the fan connector ③
5. Release the screws of the fan mounting bracket ④
6. Remove the fan mounting bracket ⑤
Service and maintenance
6.2 Replacing the cooling fan
Power Module PM230, IP20 / Push-through technology (PT)
54 Hardware Installation Manual, 08/2016, A5E34331322B AB
