The following applies when using a sine-wave filter:
● Operation is only permissible with pulse frequencies from 4 kHz to 8 kHz.
● The inverter power is reduced by 5%.
● The maximum output frequency of the inverter is 150 Hz at 380 V to 480 V.
● Operation and commissioning may only be performed with the motor connected, as the
sine-wave filter is not no-load proof.
● An output reactor is superfluous.
Sine-wave filter - design 1
0RXQWLQJGLPHQVLRQV
'ULOOLQJGLPHQVLRQV
:
+
'
WW
E

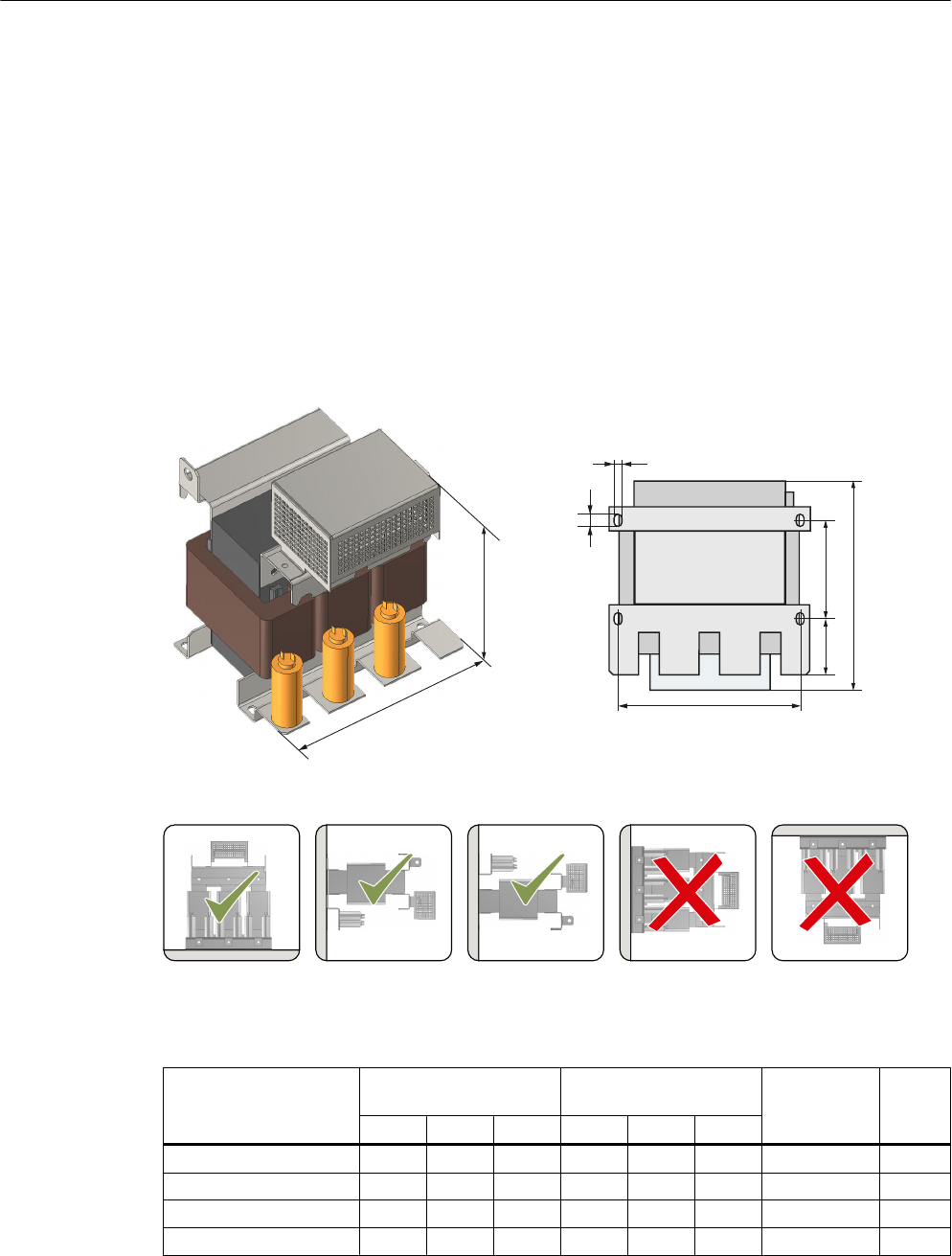

Figure 8-1 Dimensions and drilling patterns
Figure 8-2 Mounting position
Table 8-1 Dimensions and weights
Sine-wave filter Overall dimensions
(mm)
Drilling dimensions (mm) Fixing/torque
(Nm)
Weight
(kg)
W H D b t1 t2
6SL3202-0AE26-2SA0 250 315 262 230 127 90.5 4 x M6 / 7 34
6SL3202-0AE28-8SA0 275 368 275 250 132 100.5 4 x M8 / 13 45
6SL3202-0AE31-5SA0 350 440 305 320 156.5 113 4 x M8 / 13 63
6SL3202-0AE31-8SA0 350 468 305 320 156.5 113 4 x M8 / 13 80
Spare parts and accessories
8.3 Optional accessories
