Dimensions

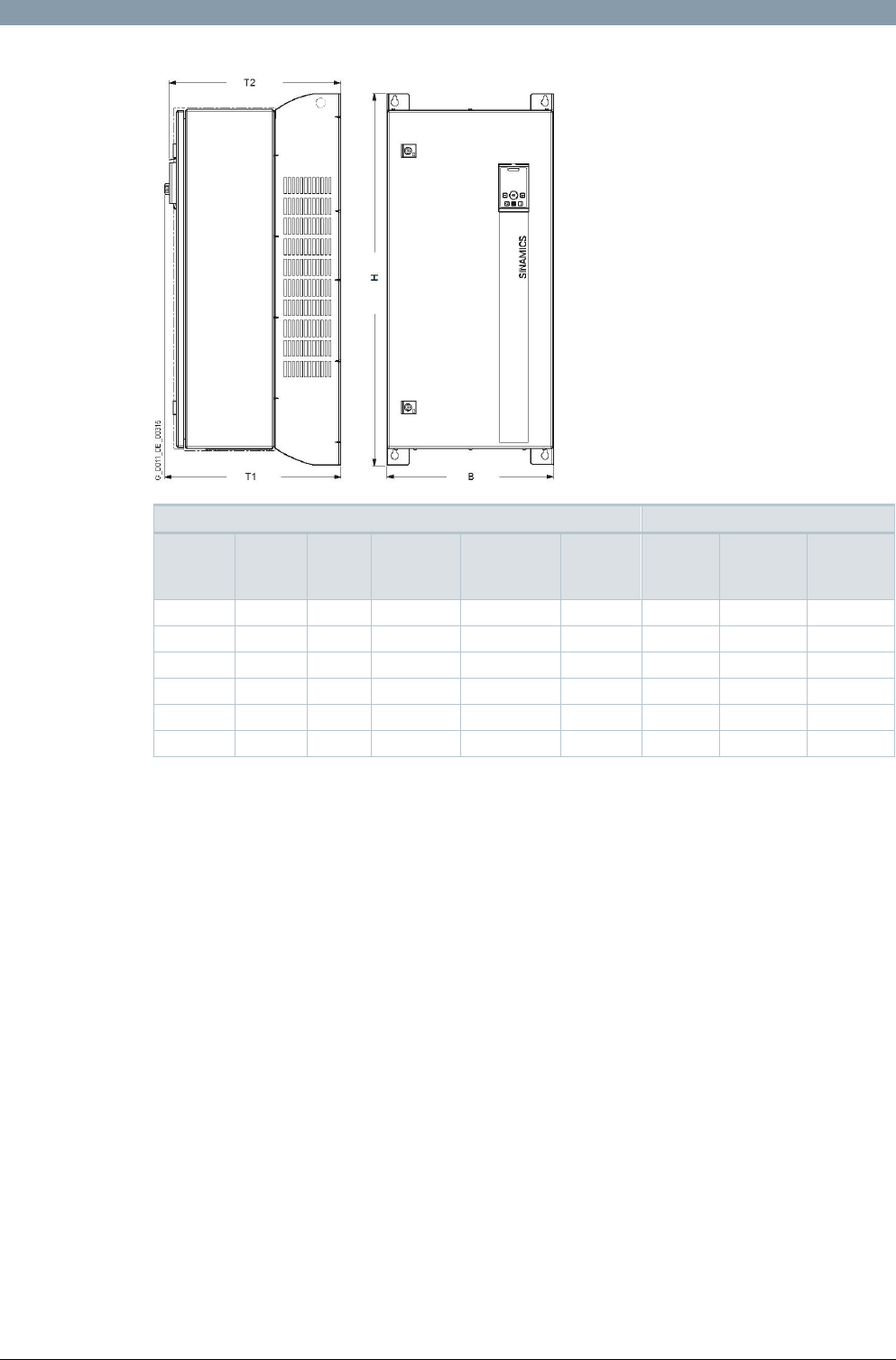

Dimension drawing Power Module PM230, IP55 with integrated line filter A/B
Dimensions (mm) Clearances (mm)
Frame
size
B H T1 with
IOP-2-BT
T1 with
blanking
cover/BOP-2
T2 without
cover
Waste
heat
(top)
cooling air
(bottom)
cooling air
(side)
A 154 460 266 256 249 100 100 0
B 180 540 266 256 249 100 100 0
C 230 620 266 256 249 125 125 0
D 320 640 346 336 329 300 300 50
E 320 751 346 336 329 300 300 50
F 410 915 433 423 416 350 350 50
