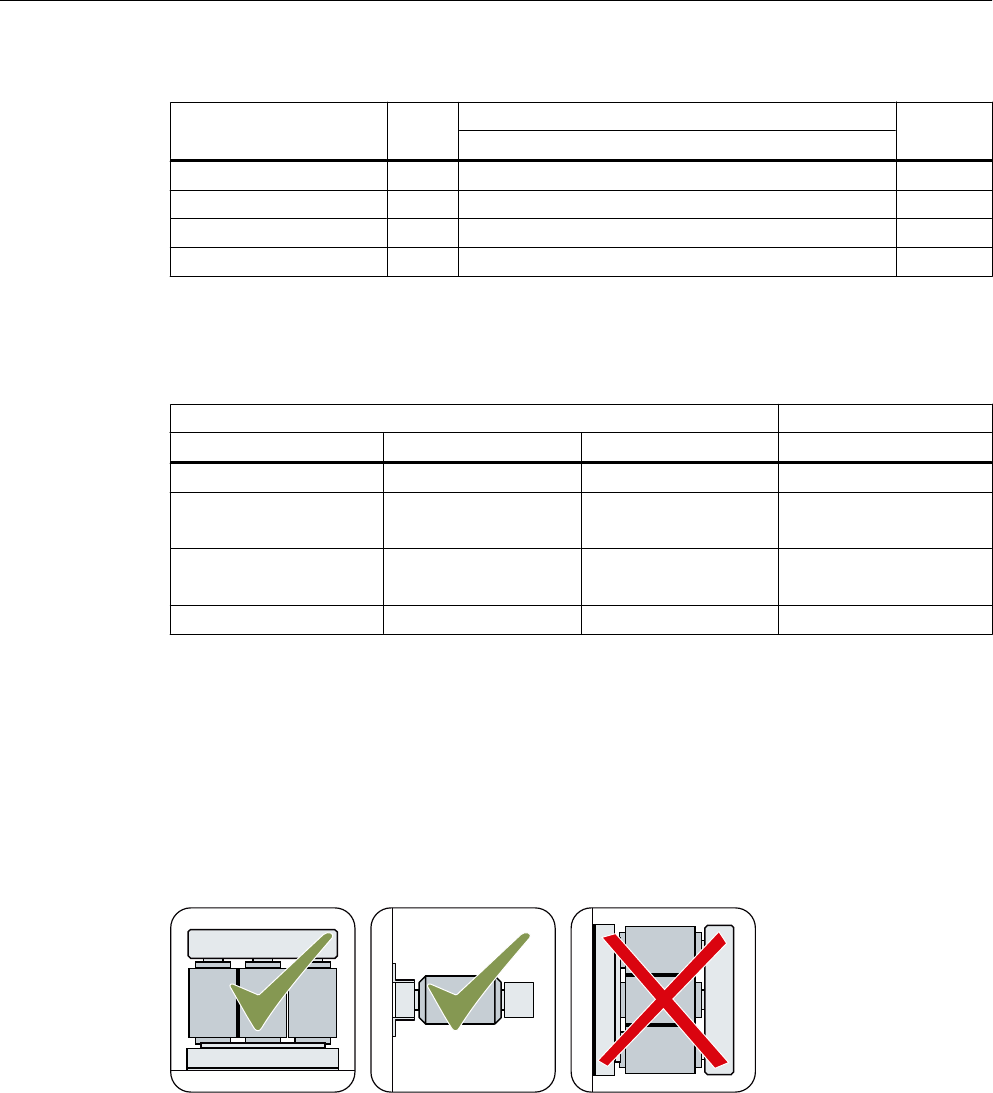

Table 8-2 Technical data
Article number P
loss
1)
(W)
Connection Degree of
protection
Power Module / motor
6SL3202-0AE26-2SA0 65 Screw terminals 25 … 50 mm
2
IP20
6SL3202-0AE28-8SA0 100 Screw terminals 25 … 95 mm
2
IP20
6SL3202-0AE31-5SA0 180 Screw terminals 50 … 150 mm
2
IP20
6SL3202-0AE31-8SA0 190 Screw terminals 50 … 150 mm
2
IP20
1)
Power loss at 50 Hz
Table 8-3 Assignment table
Power Module Sine-wave filters
Article number Power (kW) Frame size Article number
6SL3210-1NE24-5 . L0 22 FSD 6SL3202-0AE26-2SA0
6SL3210-1NE26-0 . L0
6SL3210-1NE27-5 . L0
30
37
FSD
FSE
6SL3202-0AE28-8SA0
6SL3210-1NE28-8 . L0
6SL3210-1NE31-1 . L0
45
55
FSE
FSF
6SL3202-0AE31-5SA0
6SL3210-1NE31-5 . L0 75 FSF 6SL3202-0AE31-8SA0
8.3.4 Output reactors
When using the output reactor it is not permissible that the output frequency exceeds 150 Hz.
It is not permissible that the pulse frequency exceeds 4 kHz
Mounting position
Spare parts and accessories
8.3 Optional accessories
Power Module PM230, IP20 / Push-through technology (PT)
84 Hardware Installation Manual, 08/2016, A5E34331322B AB
