8.3.2 Line filters
With a line filter, the inverter can achieve a higher radio interference class.
The line filters integrated in the inverter correspond to Category C2 according to EN 61800-3.
External filters are available for Category C2 or C1 according to EN 61800-3. Details are
provided in the following tables.
NOTICE
The line filter is damaged when operated on inadmissible line supplies
The line filter is only suitable for operation on TN or TT line systems with a grounded neutral
point. The line filter is damaged if operated on all other line supplies.
For inverters equipped with line filter, only connect to TN or TT line systems with a
grounded neutral point.

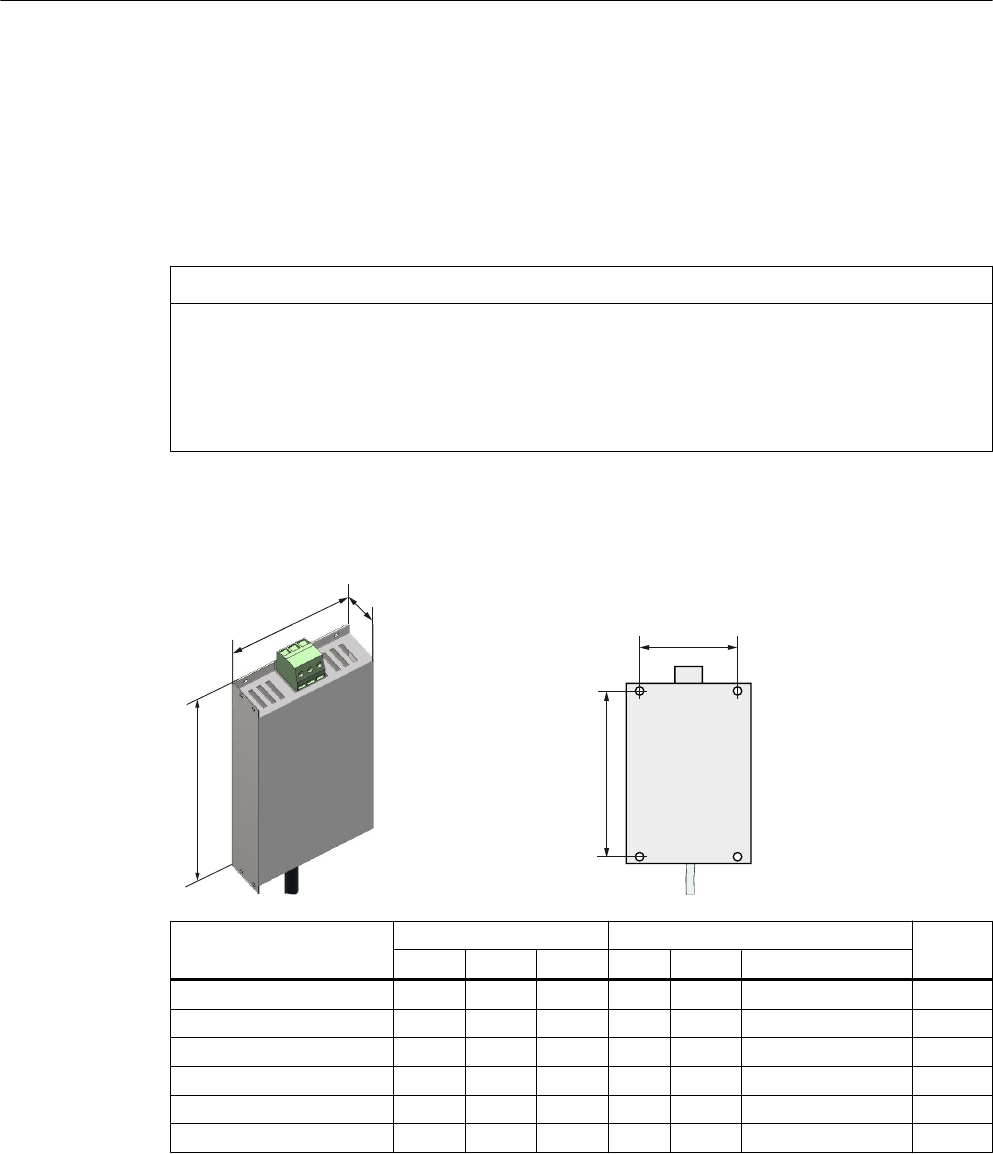

Dimensions, drilling patterns and weights
0RXQWLQJGLPHQVLRQV
'ULOOLQJGLPHQVLRQV
:
'
+
K
E
G
:
Article number Overall dimensions (mm) Drilling dimensions (mm) Weight
(kg)
W H D b h Fixing
6SL3203-0BE17-7BA0 73 202 65 62.3 186 4 x M4 / 2.5 Nm 1.8 kg
6SL3203-0BE21-8BA0 100 297 85 80 281 4 x M4 / 2.5 Nm 4.0 kg
6SL3203-0BE23-8BA0 140 359 95 120 343 4 x M5 / 6 Nm 7.3 kg
6SL3203-0BE27-5BA0 100 400 140 75 385 4 x M6 / 10 Nm 7.6 kg
6SL3203-0BE31-1BA0 110 480 140 85 465 4 x M6 / 10 Nm 11.9 kg
6SL3203-0BE31-8BA0 150 517 230 120 495 4 x M6 / 10 Nm 21.7 kg
Spare parts and accessories
8.3 Optional accessories
