Connecting
5.3 Connecting the line and motor cable at the inverter
PM230 Power Module, IP55
36 Hardware Installation Manual, 12/2016, A5E35319202B AB
7. Where necessary, fit the supplied ferrite ring onto the motor cable.
Ferrite rings are required to be able to comply with the limit values of IEC 61800-3,
Category C1 with reference to grid-bound interference voltages when using Power
Modules with integrated line filters.
If you use cables > 25 m, the requirements of Category C1 are no longer satisfied.

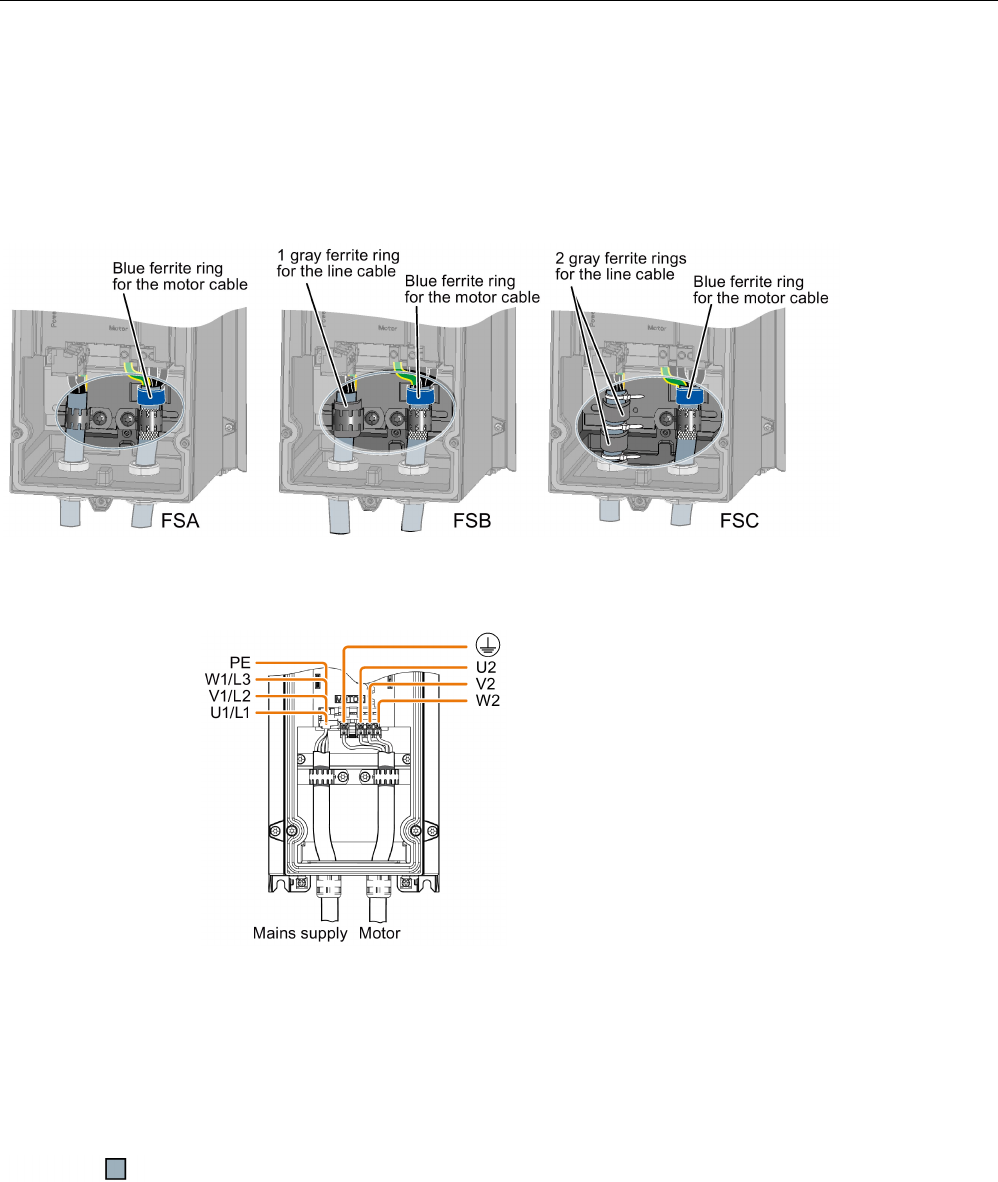

Figure 5-4 Ferrite rings for the mains and motor cables
8. Connect the mains supply and the motor.
Figure 5-5 Connections for PM230 Power Modules, FSA … FSC
The Power Modules are equipped with removable plug connectors that cannot be
inadvertently interchanged. To remove the connectors, press the red lever to release the
interlock.
9. Fit the front cover of the Power Module.
Make sure that the seal of the front cover is not damaged.
You have now connected both the mains supply and the motor to a FSA … FSC Power
Module.
