8.3.4.2 Output reactors for inverters FSD ... FSF
Dimensions, drilling patterns and weights
0RXQWLQJGLPHQVLRQV 'ULOOLQJSDWWHUQ
+
%
7
WW
E

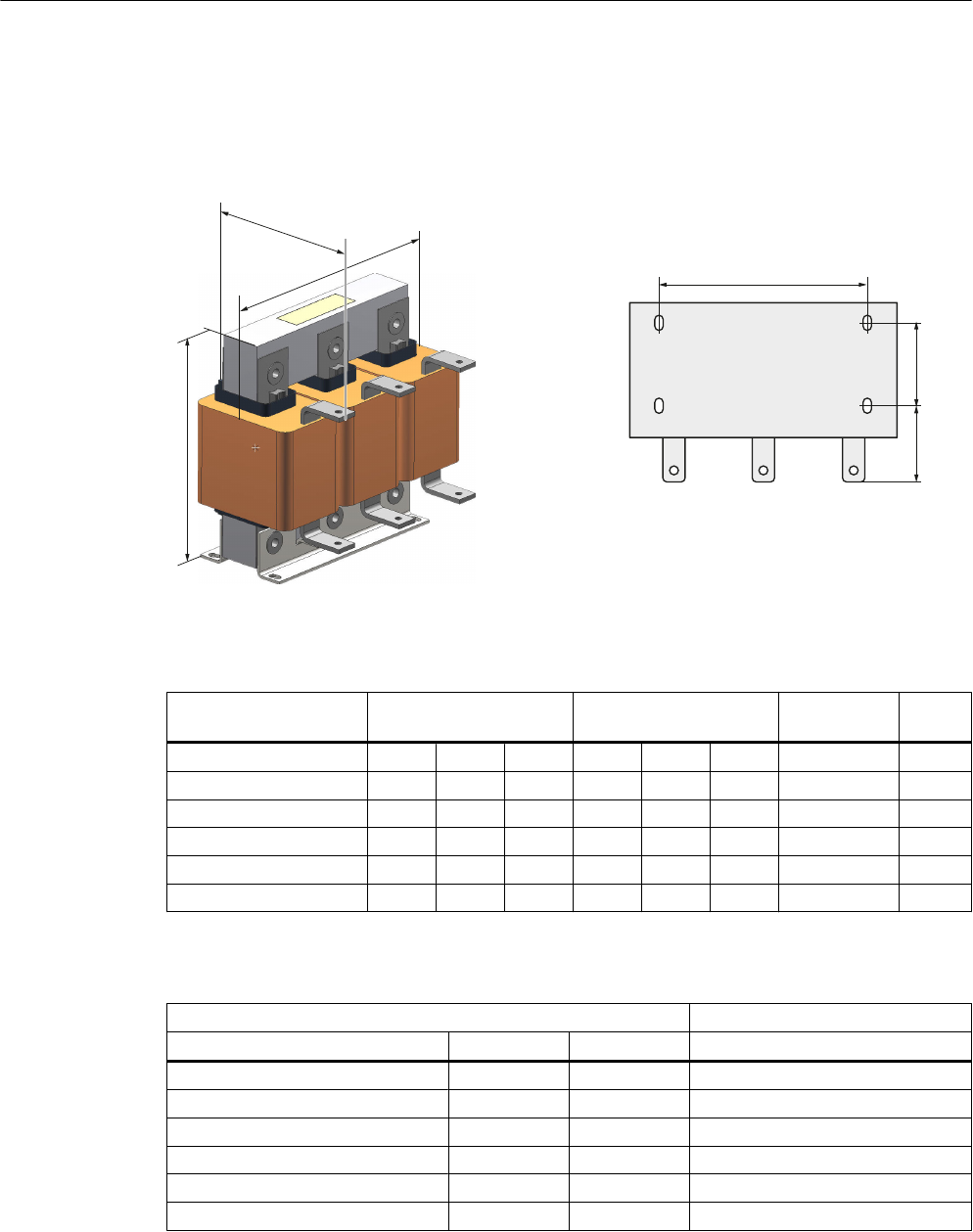

Figure 8-3 Dimensions and drilling patterns
Table 8-5 Dimensions and weights
Article number Overall dimensions
(mm)
Drilling dimensions (mm) Fixing/torque
(Nm)
Weight
(kg)
W H D b t1 t2
6SE6400-3TC03-8DD0 225 210 179 176 93 75.5 4 x M6 / 7 19
6SE6400-3TC07-5ED0 270 248 209 200 102 91.5 4 x M8 / 13 26.5
6SE6400-3TC14-5FD0 350 321 288 264 140 134 4 x M8 / 13 57
6SL3000-2BE32-1AA0 300 285 257 224 165 78 4 x M8 / 13 60
6SL3000-2BE32-6AA0 300 315 277 224 185 78 4 x M8 / 13 66
Assignment table
Power Module Output reactor
Article number Power Frame size Article number
6SL3210-1NE24-5 . L0 22 kW FSD 6SL3202-0AE23-8CA0
6SL3210-1NE26-0 . L0 30 kW FSD 6SE6400-3TC03-8DD0
6SL3210-1NE27-5 . L0 37 kW FSD 6SE6400-3TC05-4DD0
6SL3210-1NE28-8 . L0 45 kW FSE 6SE6400-3TC08-0ED0
6SL3210-1NE31-1 . L0 55 kW FSE 6SE6400-3TC07-5ED0
6SL3210-1NE31-5 . L0 75 kW FSF 6SE6400-3TC14-5FD0
