Installing/mounting
4.4 Installing the Control Unit and Operator Panel
PM230 Power Module, IP55
Hardware Installation Manual, 12/2016, A5E35319202B AB
27

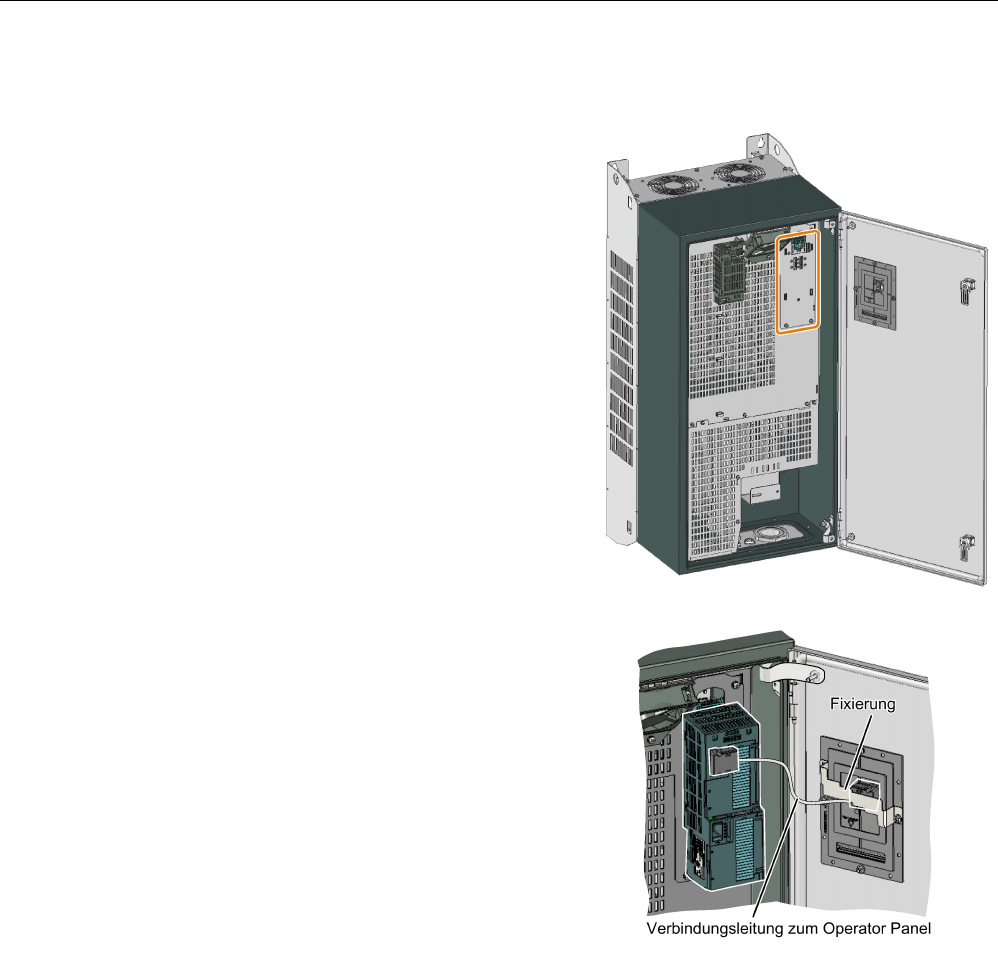

Installing the Control Unit, PM230 IP55 - FSD … FSF
To insert or detach the Control Unit, you must
open the front door of the Power Module.
Close the door before you commission the i
n-
verter. Check to ensure that the
seals are not
damaged.
Operation with operator panel
To connect the operator panel to the Control
Unit, you have to plug in the supplied connec
t-
ing cable to t
he Control Unit and the operator
panel.
Fasten the plug connector in the door with the
supplied clamp.
