Connecting
5.3 Connecting the line and motor cable at the inverter
PM230 Power Module, IP55
34 Hardware Installation Manual, 12/2016, A5E35319202B AB
5.3.2
Establishing a line and motor connection
EMC cable glands
To meet the requirements of degree of protection IP55/UL, type 12, and to fulfill EMC
requirements, adhere to the following:
● Use EMC cable glands for the control cables.
● Make sure that the cable glands match the drill holes in the plate.

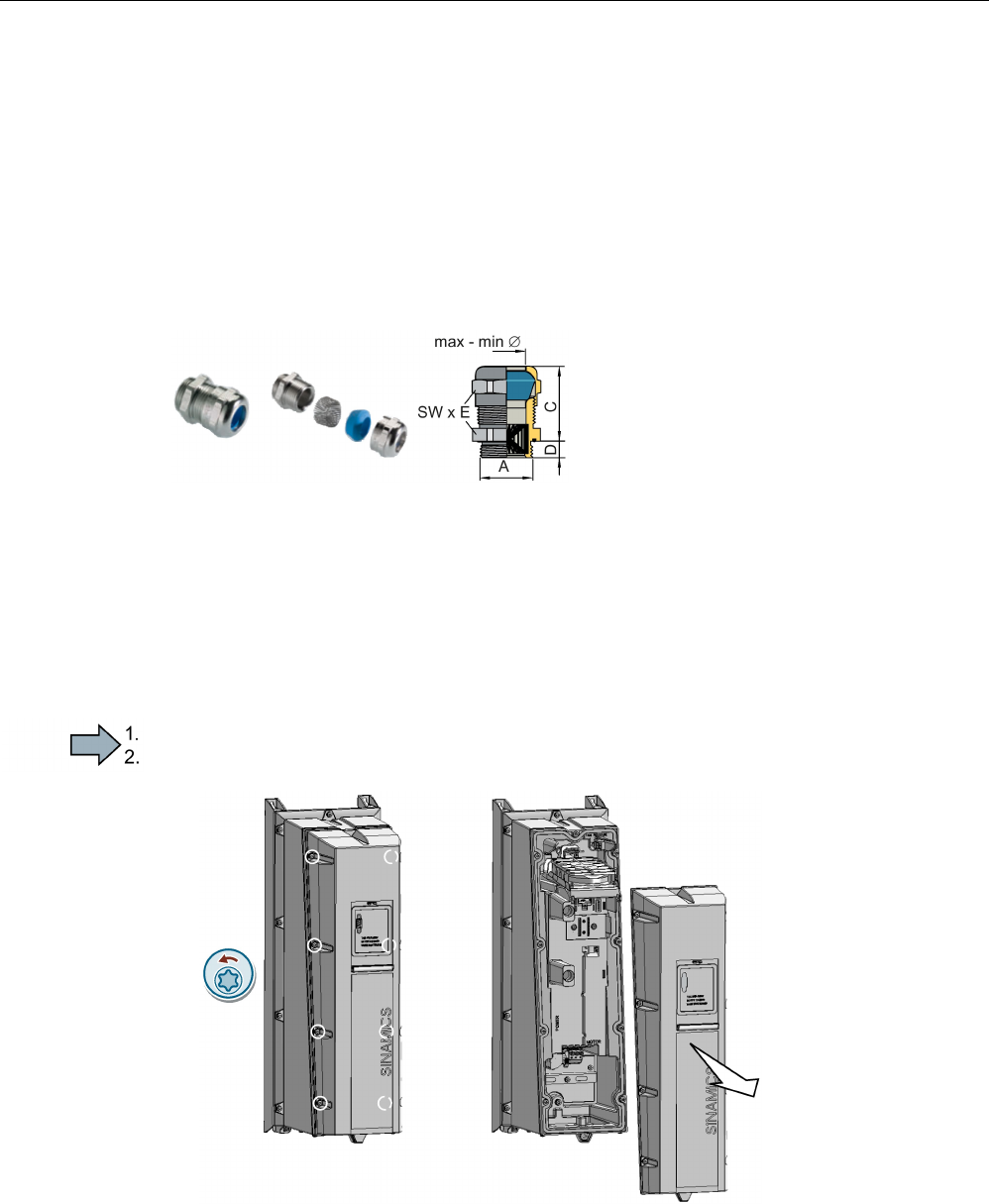

Figure 5-2 Example of an EMC cable gland (Blueglobe)
The EMC cable glands are not included in the scope of supply of the inverter. Rubber
sleeves for unused drill holes in the cable cover plate are included in the scope of supply.
Connecting the mains supply and motor, frame sizes FSA ... FSC
Procedure
To connect the mains supply and motor to FSA … FSC Power Modules, proceed as follows:
1. Remove the front cover of the Power Module.
