4.4.2 Dimension drawings and drilling dimensions for PT Power Modules
Table 4-4 Mounting dimensions without Control Unit (CU) [mm]
Frame
size
Width Height Depth
1)
without shield plate with shield plate T1 +T2 T1 T2
FSA 126 238 322 171 118 53
FSB 154 345 430 171 118 53
FSC 200 411 500 171 118 53
1)
Panel thickness of the control cabinet ≤ 3.5 mm

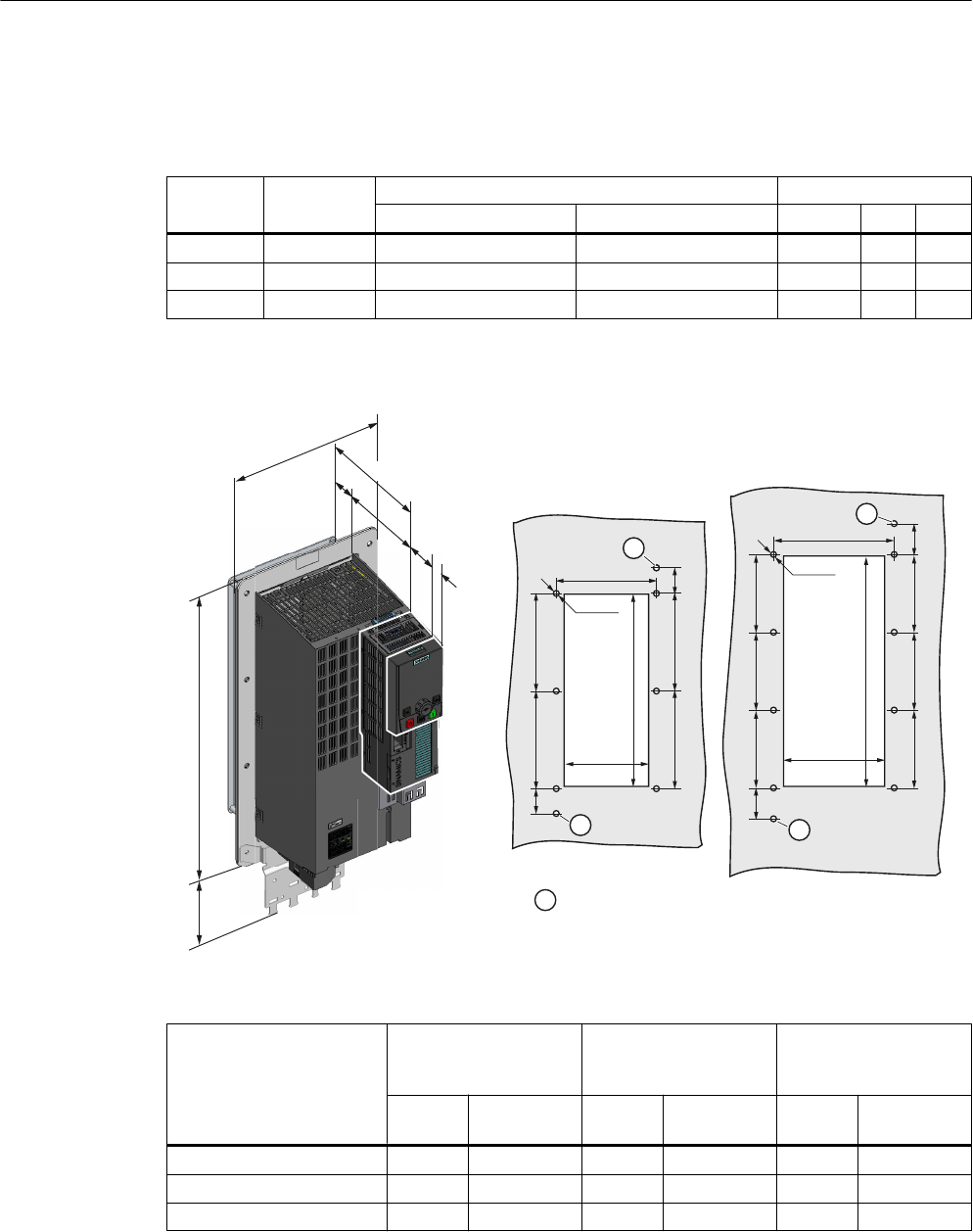

The following dimension drawings and drilling patterns are not to scale.
+HLJKW
:LGWK
7
7
'HSWK
6ZLWFKFDELQHWFXWRXWDQGPRXQWLQJKROHVIRU37
GHYLFHV
0RXQWLQJKROHIRUWKHPRXQWLQJIUDPH
6KLHOG
SODWH
&8
,23
DD
DD
G
)6$)6%
F
F
H
E
G
H
E
)6&
F
F
DDD
DDD
PP
PP
Table 4-5 Depth with Control Unit and operator panel
Control Unit Power Module + Con‐
trol Unit
(mm)
Power Module + Con‐
trol Unit + IOP
(mm)
Power Module + Con‐
trol Unit + BOP
(mm)
Total in the cabi‐
net
Total in the cabi‐
net
Total in the cabi‐
net
CU230P-2 231 177.7 253 199.7 244 190.7
CU240B-2 / CU240E-2 212 158.7 234 180.7 225 171.7
CU250S-2 234 180.7 256 202.7 247 193.7
Installing/mounting
4.4 Mounting the Power Modules
Power Module PM230, IP20 / Push-through technology (PT)
Hardware Installation Manual, 08/2016, A5E34331322B AB 35
