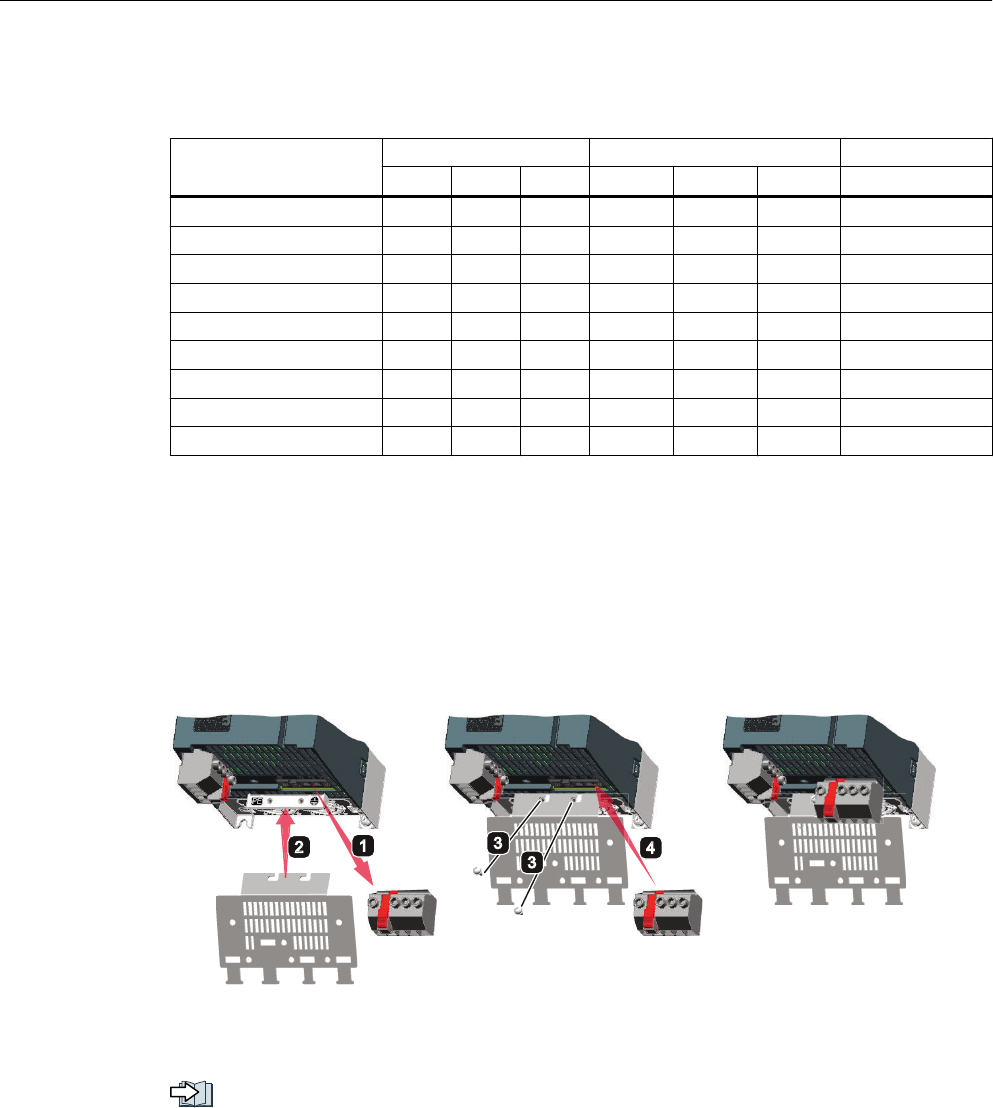

Table 4-3 Drilling dimensions, cooling air clearances [mm] and fixing [Nm]
Frame size Drilling dimensions Cooling air clearances
1)
Mounting
b h c Top Bottom Front Screws/torque
FSA 62.3 186 6 80 100 --- 2 x M4 / 2.5
FSB 80 281 6 80 100 --- 4 x M4 / 2.5
FSC 120 343 6 80 100 --- 4 x M5 / 3.0
FSD without filter 235 325 11 300 300 100 4 x M6 / 6.0
FSD with filter 235 419 11 300 300 100 4 x M6 / 6.0
FSE without filter 235 405 11 300 300 100 4 x M6 / 10
FSE with filter 235 451 11 300 300 100 4 x M6 / 10
FSF without filter 300 598 11 350 350 100 4 x M8 / 13
FSF with filter 300 899 11 350 350 100 4 x M8 / 13
1)
You can mount the Power Modules without any lateral cooling air clearance. For tolerance reasons,
we recommend a lateral clearance of approx. 1 mm.
Mounting the shield plate
FSA … FSC
The shield plate is included in the scope of delivery of the device. Mount the shield plate as
shown in the following diagram.
Frame sizes FSD … FSF
Is available as accessory for frame sizes FSD … FSF
Shield connection kit (Page 88)
Installing/mounting
4.4 Mounting the Power Modules
Power Module PM230, IP20 / Push-through technology (PT)
34 Hardware Installation Manual, 08/2016, A5E34331322B AB
